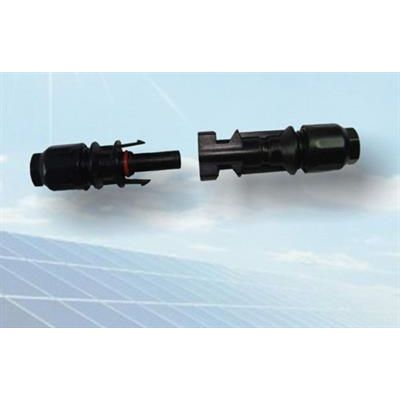

New-Sun - Model PV4.0 -Cable Solar Connector
Insulation material PPE. Flame class UL94-V0. Rated current 30A. Material RTI 110degree.
Most popular related searches
- Rated voltage 1000VDC
- Insertion force =<50N
- Test voltage 6kA(50Hz 1min.)
- Withfrawal force >=50N
- Type contact resistance =<5mohm
- Ambient temperature range -40~90degree
- Contact material
- Copper,Tin plated
- Pin dimensions OD.4.0
- Degree of protection IP67
- Suitable cable cross section 1.5~6mm2
- Safety degree II
- Lock nut force 1.5~2.0Nm
