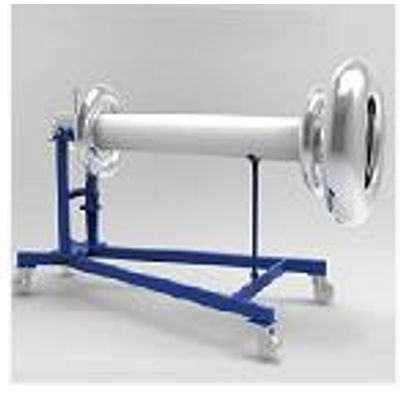

Himalayal - Model CTT-150kV -Cable Test Termination
One pair. Un rated voltage fKVl: 150 r.m.s.
Most popular related searches
- UI rated impulse voltage (KV): Negative polarity: 550
- Max. dimension of power cable (include insulation layer, mm): 133
- Power: 220V/20A, 50/60HZ
- Max. cooling capacitance (KW): 60
- Water capacitance (I): 500
- Max. temperature (°C): 60
- Max. pressure (atm): 4
- Electric conductivity range (us/cm): 0.1-2
- Max. ambient temperature (°C): 35
- Min. ambient temperature (°C): 3
- Max. cooling water temperature (°C): 20
- Min. cooling water flow velocity (I/min): 45
- Connecting water pipe (in): 1
- Water pipe head (in): 3/4
- Dimension (mm): 1200*1400*1700
- Weight (not include water, kg): 272
- Terminal tilt angle: 30°
- Dimension (L*W, mm): 1800*1200
- Cable mounting height (mm): 1000
- Terminal mounting height (mm): 1900
- Min HV insulation distance (mm): 1000
