Hangzhou Linan Yatong Cables Co.,Ltd

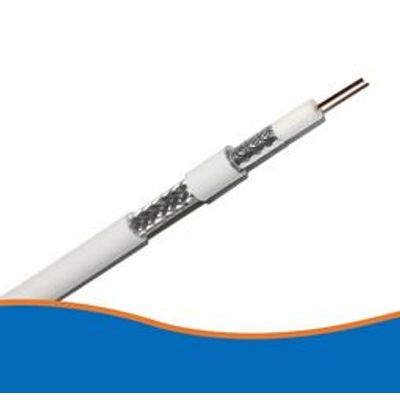

Yatong - Model RG59/U -Cables
Center Conductor 0.025in(0.64mm), BC/CCS.
Construction
Physical Specifications Material Specifications
- Dielectric 0.146in(3.71mm) SPE
- 1`st Shield AP bonded AL foil
- 2`st Shield 60%-95% coverage BC/TC/AL
- 3`st Shield
- 4`st Shield
- jacket 0.240in(6.10mm) PVC
Mechanical Properties
- Cable Temperature Rating 80°C
- Electrical Properties
- Impedance 75±3Ω
- Capacitance 19.4pF/ft(63.6 pF/m)
- SRL 5-300MHz≥20dB
- 300-1000MHz≥18dB
