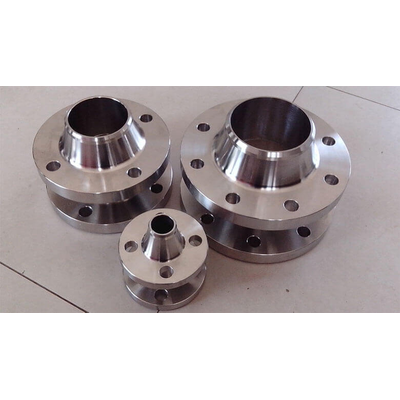

PM Industries - Model ASTM A105 -Carbon Steel Flange

1. Carbon steel A105 flanges are extremely ductile with extraordinary mechanical properties. It provides exceptional resistance to various reactions caused by chemicals, gases, and polluted water. All of these properties make Carbon Steel A105 flanges a suitable application for commercial usage.
2. This grade is perfect for heat and low-temperature applications, as it is made of low-alloy carbon. Carbon steel A105 flanges have high strength and ductility. However, these flanges are vulnerable to erosion in critical conditions.
3. Temperature Resistance: Carbon steel A105 flanges are designed to endure a wide range of temperatures, from ambient to higher service temperatures. This makes them suited for applications involving frequent temperature variations.
4. The material composition of carbon steel A105 flanges consists of other ductile metals. It primarily comprises small amounts of manganese, iron, phosphorus, carbon, silicon, etc., which guarantee good weldability.

Carbon steel flanges are commonly applicable in industries where the ductility and robustness of the grade are prioritized. It is commonly used in various industries because of its durability and budget-friendly nature. Here are some applications of these flanges:

Carbon steel flanges are commonly used in pressure vessels, storage tanks, and boilers. These flanges are commonly used to connect pipe ends to help pass the material from one end to another. A105 flanges provide a non-absorbent connection, permitting easy maintenance, installation, and repair. These flanges are highly recommended in oil and gas transmission, refineries, water treatment facilities, and power generation factories.

Generally, these flanges are used for many purposes, but they are widely used in industries for transferring material from one end to another.

• Standards: ANSI/ASME B16.5, B16.48, ANSI Flanges, GOST Flanges, DIN Flanges, EN-1092, B16.47 Series A & B, ASME Flanges, EN Flanges, AWWA Flanges, BS Flanges.
• JIS Standard: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• DIN FLANGES: DIN 2527, 2627, 2631, 2656, 2576, 2673, 2629, 2628, 2566, 2641, 2637, 2655, 2634, 2636, 2632, 2633, 2638, 2642, 2573, 2635.
• Pressure Rating: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
• Types: Threaded, Plate, Screwed, Forged.
• Supporting material: Gasket, Ring Joint, Flange Bolts
• Size range: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
• Production technique: Forged, machined and Heat treated
• Available Flange Type: Weld Neck Flanges, RTJ Flanges, Slip On Flanges, Spectacle Blind Flanges, Flanges Gaskets, Square Flanges, Standard Insert Flanges, High Hub Blinds Flanges, Flat Flanges, forged flanges, Weldo / Nipo Flanges, Jacket Insert Flanges, Tongue groove Flanges, Blind Flanges, Socket Weld Flanges, Large diameter Flanges, Long Weld Neck Flanges, Spacer Blinds, SWRF Flanges, SORF Flanges, Angle Face Rings Flanges, Spades Ring Spacers Flanges, WNRF Flanges, Screwed Flanges, Insert Flanges, flanges bolts, cf flange, Lap Joint Flanges, ASME B16.36 Orifice Flanges, Plate Flange, Expander Flanges, Ring Type Joint Flanges, Loose Flanges, Reducing Flanges, puddle flange, Threaded Flanges, blank flange, vacuum flange.
• Connect Type/ Flange Face Type: Ring Type Joint (RTJ), Flat Face (FF), Tongue & Groove, Small Male-Female (SMF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Tongue.
• Custom design: As per your drawing
• Test: Direct-reading Spectrograph, X-ray detector, UItrasonic flaw detector, Magnetic particle detector, Hydrostatic testing machine.
• Origin: Indian / USA / Korean / West Europe / Japan
• Pressure Class: PN 6 TO PN 100
• Thickness: Normal Pipe Size ≤ 18
• Bore Diameter: Normal Pipe ≤ 10
• High Temperature: Above 200°C (400°F) For Class 150 Or Above 400°C (750°F)
• Low Temperature: Above -29 Degree C (−20°F)
• Coating/Surface Treatment:: Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized.
• European/African/Russian Standard Flanges: Available
• Gaskets Types: Full Face, Metallic Ring, Flat Ring Gasket
• Marking Standard: Name of Manufacturer
• ScheduleType of Flange Facing
• Pressure ClassNominal Pipe Size, etc
• Test Certificates: EN 10204/3.1B, NACE MR0103, NACE MR0175
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
