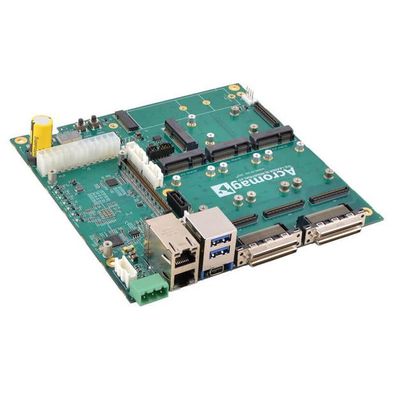

Acromag - Model ACEX4040 -Carrier Card

• Mini ITX form factor
• COM Express Type 10 site
• Four I/O expansion slots (AcroPack or MiniPCIe)

With its rugged design and compact Mini-ITX form factor, this carrier card is easily mounted in a variety of enclosures for rapid development. High-density I/O connectors and numerous ports simplify interfacing to field devices and peripherals.

Select from 25+ AcroPack modules to install any combination of analog I/O, digital I/O, serial I/O, communication, and FPGA processor functions.

Designed for use in systems with size, weight, power and cost restrictions (SWaP-C), this carrier card provides a flexible solution for a broad range of signal processing tasks.

The COM Express site supports high-performance, low-power Intel Atom CPU modules.

The four I/O slots interface Acromag’s rugged AcroPack modules or Mini PCIe cards enabling a powerful mix of measurement, control, and communication capabilities. An M.2 slot offers flexible on-board storage while a SATA connector provides additional data storage options.

• Mini-ITX format for easy mounting
• Support for COM Express Type 10 Intel Atom CPU (Apollo Lake)
• Four AcroPack / mini PCIe slots for field I/O
  – A/D and D/A analog I/O
  – Digital I/O and counter/timers
  – Serial communication
  – Ethernet communication
  – CANbus communication
  – Mil-STD 1553 and ARINC 429
  – FPGA signal processing
  – Many more
• Ports available
  – Four field I/O 68-pin CHAMP
  – Two GbE RJ45 ports
  – Mini-DisplayPort
  – Two USB 3.0 ports
  – Two COM RS232 ports
• One M.2 site
• One SATA connector
• -40 to 85°C extended temperature range
• Redundant auto-switch power capability using ATX and 10-36V DC power supplies
