DANLERS Limited

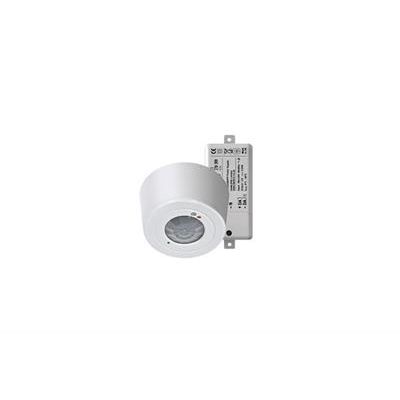

ControlZAPP - Model CZCESR - Ceiling Mounted Controls for Switching Only
FromDANLERS Limited
Programmable Energy Saving Control with Scheduling for Switching Applications. This multi-functional control can be mounted directly onto solid ceilings or a range of different mounting boxes. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. It includes a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. Easy to configure interface enabling greater energy saving, safety and security.
Most popular related searches
- Accurate ‘Real time’ clock with battery back up when powered off
- Accurately timed override ON or OFF
- Active or Passive PIR occupancy switching
- Patented ‘Intelligent’ photocell calibration
- Automatic Daylight Savings Time (BST) correction with offset adjustment
- Automatic Sunrise / Sunset prediction. This feature can be remotely adjusted via APP.
- Upload indicator to ensure successful programming.
- Voltage: Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
- Loading:
- 10 amp (2500W) of Resistive loads.
- 6 amp (1500W) of Fluorescent loads.
- 3 amp (750W) of Transformer loads.
- Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings.
- Minimum load: 2W resistive, suitable for most energy saving lamps, LED’s and emergency fittings.
- Detection range: 360 degrees with 8m diameter when mounted at a 2.4m ceiling height.
- Time Lag: Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
- Short Visit Time: Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
- Lux: Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
- Sensitivity: Adjustable via APP.
- Output: Mains switching or DALI switching functionality.
- Dimensions: Device: 91mm diameter x 45mm
- Power Supply: 120 x 50 x 32mm
