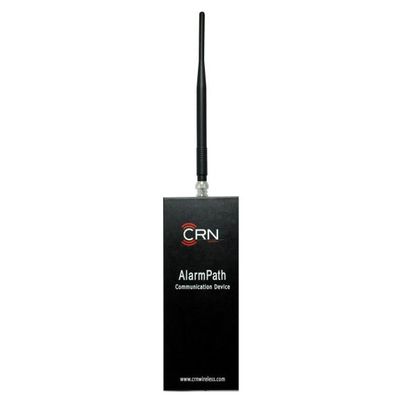

CRN AlarmPath - Model AP-D Series -Cellular Alarm Communication Device
FromCRN Wireless
The AP-D Series provides a full data wireless communication path from the alarm panel to any central station.
Most popular related searches
- AP-D-LTE - Operates on the LTE Long Term Evolution cellular networks.
- AP-D-CDMA - Operates on nationwide CDMA cellular networks.
- Full data dial capture reports all zone and event information.
- Ideal for new installs, system upgrades or panel takeovers.
- Primary reporting, or back-up reporting with optional telco board.
- Supports Contact ID and Pulsed 4/2 formats.
- Reports to any central station. No additional equipment required.
- Daily, weekly, or monthly supervisory test options.
- Simulated telco 48V switched off if cell coverage is lost, causing alert.
- Powered from the panel. No additional power supply/battery required.
- Designed, manufactured and supported in the USA.
- Save Time: Fast, simple installation with only four wires to connect. All units are factory programmed.
- Save Money: Straightforward billing with no activation fees, complicated programs or unrealistic minimums. Low upfront equipment pricing reduces your initial cash outlay.
- Increase RMR: Wireless reporting increases RMR while saving your customer money by eliminating land lines.
- Increase Profit: CRN Wireless devices offer a simple, cost-effective means to grow your sales and increase your profit.
- Radio Transceiver:
- AP-D-LTE CAT1 penta band.
- AP-D-CDMA 1xRTT dual band.
- Power Source: 12VDC from the alarm panel.
- Standby power consumption: <20 mA.
- Transmit power consumption: < 2 A for less than one second.
- Dimensions: 7.75”H x 3.25”W x 1.5”D (dimensions exclude antenna)
