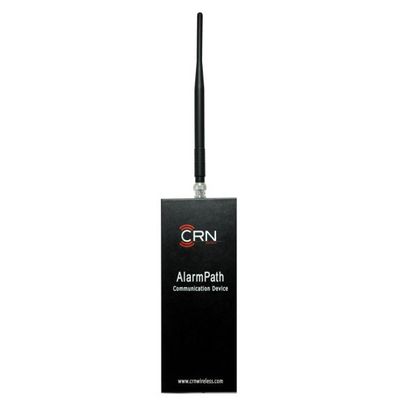

CRN AlarmPathModel AP-S Series -Cellular Alarm Communication Device

SHARE

The AP-S Series provides a summary data wireless communication path from the alarm panel to any central station.

Most popular related searches
  • Operates on nationwide CDMA cellular networks.
  • Summary data reporting of up to four unique conditions.
  • Ideal for back-up/redundant reporting.
  • Discrete inputs triggered in as little as 750 milliseconds.
  • SmartChannelTM detects burg and fire from the bell output.
  • Reports to any central station. No additional equipment required.
  • Daily, weekly, or monthly supervisory test options.
  • Powered from the panel. No additional power supply/battery required.
  • Optional High-Security Output (HSO) trips if cellular coverage is lost, causing panel alert.
  • Designed, manufactured and supported in the USA.
  • Save Time: Fast, simple installation with only a few wires to connect. All units are factory programmed.
  • Save Money: Straightforward billing with no activation fees, complicated programs or unrealistic minimums. Low upfront equipment pricing reduces your initial cash outlay.
  • Increase RMR: Wireless reporting increases RMR while saving your customer money by eliminating land lines.
  • Increase Profit: CRN Wireless devices offer a simple, cost-effective means to grow your sales and increase your profit.
  • Radio Transceiver: 1xRTT dual band.
  • Power Source: 12VDC from the alarm panel.
  • Standby power consumption: < 20 mA.
  • Transmit power consumption: < 2 A for less than one second.
  • Dimensions: 7.75”H x 3.25”W x 1.5”D (dimensions exclude antenna).
