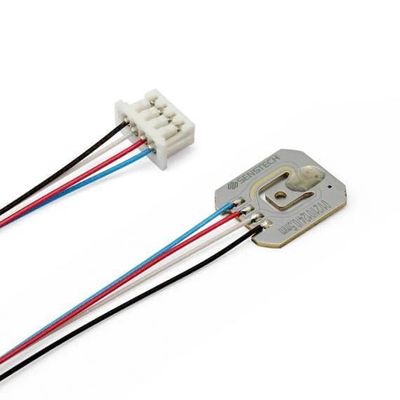

IST AG - Model KZ-011-0400-18N-E0-K1-G0 -Centered Force Sensor
Force range: 18 N - Application of force: None (hole only) - Contacting: Stranded wires (20cm) with PicoBlade connector - Housing: None. With this compact force sensor, the force is applied to a round-head rivet in the center. The sensor can be mounted very easily in a blind hole with a diameter of 12 mm (0.472 in) and a clearance. Flexible contacting and housing options make this sensor suitable for a wide variety of applications.
Most popular related searches
- Product Name: KZ-011-0400-18N-E0-K1-G0
- Force range: 18 N
- Application of force: None (hole only)
- Electrical contacting: Stranded wires (20cm) with PicoBlade connector
- Housing: None
- Allowable overload: 27 N
- Sensitivity: 158 µV/V/N
- Supply voltage: 0...15 V DC
- Supply current: 1.5 …. 2.5 mA at 10 V supply voltage
- Output signal span: 0 .... 3.0 mV/V
- Bridge resistance: 4.0 …. 6.0 kΩ
- Zero offset: -0.1 .... 0.1 mV/V
- Zero repeatability: ±0.02 %FS
- Sensitivity tolerance: ±10 %
- Sensitivity repeatability: ±0.3 %
- Linearity error: ±0.2 %FS
- Thermal shift for zero: ±0.02 %FS/°C
- Thermal shift for sensitivity: 0.02 …. 0.03 %/°C
- Substrate material: Stainless Steel 1.4542 / X5CrNiCuNb16-4 /17-4 PH®
- Modulus of elasticity: 197·10³ MPa (28.5·10?6 ksi)
- Substrate thickness: 0.5 mm
- Dimensions (LxWxH): 10.5 x 9.0 x 1.1 mm
- Operating temperature range: -20 …. 125 °C
- Ambient humidity: 0 …. 95 %RH non-condensing
- Ingress protection: IP44
- Packaging: Plastic bag and label with individual calibration data
- Product code: 155882
