Chandler - Litter Conveyor

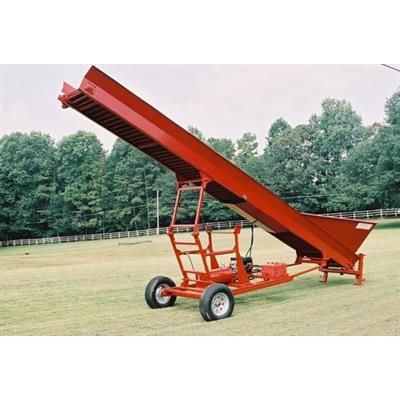

The Chandler Litter Conveyor makes loading spreaders and semi-trailers easy work; loading a 45’ trailer in as little time as 15 to 20 minutes. This Conveyor comes standard with a self-contained hydraulic system, powered by a 18 H.P. Honda engine. Operators can easily raise and lower the discharge height with our uniquely designed scissor type hoist system that has dual cylinders for smooth operation.
Most popular related searches
- Twin 12,000# Jacks
- 18 HP Honda Engine
- Detachable Hitch
- Highway Rated Tires
- Scissor Hoist w/ Dual Cylinders
- 18HP Honda GX 630 V-Twin Engine
- Large 16-gallon fuel tank provides 10 hours of run time(3600 rpm)
- Vickers V-10 Hydraulic Vane Pump
- Single 7000# Torsion Axle
- Spring-loaded Single Stage Valve for raising and lowering
- Bar-type chain with angled bars for incline compensation
- 18 Gallon Vented Hydraulic Reservoir to keep oil cool
- 10 – 14’ Discharge Height
- 32’ Conveyor Length
- Hopper Width 8’ 2 ½ ”
- Hopper Length 7’ 1 ½ ”
- Conveyor Length (roller to roller) 32’
- Discharge Height 14’ 3” (raised) 10’ 1” (lowered)
- Overall Height 16’ 6” (raised) 12’ 1” (lowered)
- Hopper Loading Height 5 ‘
- Chain Type Pintle and Angled Bar
- Tire/Wheel P22.5R/15 Highway Tires
- Engine Honda 18 HP
- 45’ Trailer Load Time 15-20 minutes
- Dual Jack Capacity 24,000 lb
