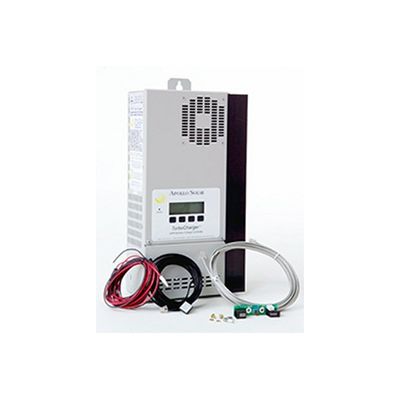

Apollo Solar - Model T80HV - Charge Controller for Battery-based PV Systems

SHARE

The T80HV is the most cost-effective Charge Controller for battery-based PV systems. Designed to work with new higher voltage PV modules, the T80HV offers improved battery life, full capacity, and 98 to 99% efficiency. With an integrated battery energy monitor, communications and Maximum Power Point Tracking, you get power and control in a single device.

Most popular related searches
photovoltaic system
charge controller
photovoltaic system engineering
energy monitor
photovoltaic module
energy monitoring
battery monitor
battery monitoring
energy harvesting
photovoltaic panel
More Power, Greater Efficiency Means Lower Total Cost of PV Systems

The T80HV TurboChager captures up to 35% more power from the PV array using Apollo Solar’s algorithm for Maximum Power Point Tracking (MPPT). The result is a dramatic reduction in the cost of a PV system by reducing the number of PV panels required, eliminating the need for heavy gauge wiring, and increasing the life of the batteries.

  • Precision charging of 12/24/36/48V batteries using voltage sense wires
  • Improved Battery Life and Full Capacity – 98% to 99% efficiency all day
  • High-efficiency circuits and robust thermal design – minimize heat generation.
  • Best MPPT Energy Harvest – the Apollo MPPT algorithm locks onto the peak power during rapidly changing insolation and temperature.
  • Power and Control in a Single Device – integrates Maximum Power Point Tracking, battery charge management, state-of-charge information, and communications.
  • Wire more PV modules in series to 180 Voc, 160 Vmp (200V abs max)
  • 80 Amps continuous output at up to 45oC (113oF) ambient temperature
  • 98% to 99% Efficiency all day
  • Precision charging of 12/24/36/48V batteries using voltage sense wires
  • One-minute set-up with fail-safe calculated defaults
  • Free Battery Energy Monitor Built In
  • Easy stacking of up to 16 T80HV’s in parallel for higher currents
  • Remote Monitoring with Optional Internet Gateway or Remote Display
