Model Inch Pro -Charging Equipment
Etrel INCH Pro chargers enable charge point operators to serve a large number of EVs, even in locations with limited power supply. Smart clustering and power management capabilities help lower installation and operational costs while support for several languages and authorisation modes ensure broader applicability. The durable enclosure of INCH Pro charging station is built to withstand the harshest weather conditions while allowing the business to stand out with the design.
Max charging power: 7,4 kW (1 x 32 A) or 22 kW (3 x 32 A) adjustable
Type 2 socket (optional shutter) with a cable lock or
Type 2 tethered charging cable
Level of protection: IP 56, IK 10
Electrical protection: DC fault current sensor 6 mA + RCD type A or
RCD Type A EV or RCD Type B or MCB char. C
User identification: PIN code or RFID, app*, SMS*
Communication: Ethernet or Wi-Fi or 4G LTE
EV communication: IEC 61851 supported, IEC 15118 ready
Connectivity: OCPP 1.6 SOAP & JSON, OCPP 2.0 JSON (upcoming), Modbus TCP
Load balancing: Yes, Dynamic Load Balancing with Load Guard
Clustering: Yes, with floating master
Energy meter: Class 2 energy meter, MID optional
Smart building integration: Yes, Modbus TCP supported
User interface: App* or embedded web interface
Material: Aluminium housing, Polycarbonate Lexan cover plate
Colour options: White, Graphite Grey
* when connected with a back-end system
UK: OLEV approved
The user interface, with support for multiple languages, is easy to use and provides all the necessary information for first-time and advanced users alike.
Different modes of authentication support several use cases based on business case requirements. Colour LCD screen on the charger can display location-based information and advertising, offering additional business opportunities.
STAND? WALL MOUNT? YOUR CALL

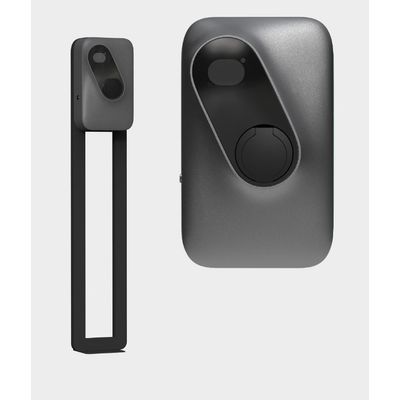

INCH Pro chargers can be installed either on a wall or pole which facilitates infrastructure planning for indoor or outdoor parking spaces.
Grow your charging cluster as your fleet/user demand increases. With Load Guard module you can charge faster without upgrading the grid connection power thus reducing preparation and charging costs. Prevent overloads by automatically shifting charging times to off-peak hours and setting the max power for the cluster. Increase grid connection point power only when necessary.
The charging station can be installed by a single person. Etrel INCH Pro comes with a mounting holder that keeps it in horizontal ergonomic position during installation.
WEB INTERFACE ENABLES REMOTE TROUBLESHOOTING FOR MINIMUM MAINTENANCE COST
Monitor and manage charging through the dedicated web interface either from a phone or computer. The web app works on any device in the same network and gives the user an in-depth insight into charging energy consumption.
HELP EV DRIVERS MAKE THEIR CHARGING SESSION WORTHWHILE
Promote points of interest to build your business and keep users engaged. Colour LCD screen on the charger can display location-based information and advertising, offering additional business opportunities.
