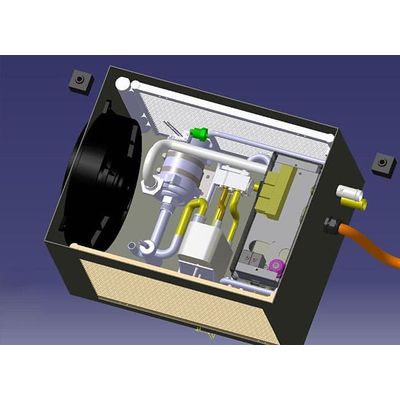

TKT - Model 3CW -Chassis Heavy Equipment Battery Pack Cooling System
The optimal operating temperature of the battery is 20° to 45°. If this temperature is exceeded, the driving range and the life of the battery will drop dramatically. What’s more, it may also affect the surrounding equipment and cause the consequences of combustion and explosion. That’s why electric vehicles especially need a battery thermal management system, which we also call a BTMS or battery cooler or battery pack cooling system. If the battery is below this temperature, its electrochemical reaction activity will become poor and the performance of the battery will be greatly reduced. It may even cut off the power directly. Our product can heat it, so we call it battery heating or battery heater. Official website https://www.busthermo.com/product/3kw-chassis-heavy-equipment-battery-thermal-management-system/
Official website https://www.busthermo.com/product/3kw-chassis-heavy-equipment-battery-thermal-management-system/
- Customized: Dimension/ Cooling/ Heating
- Recommended: Cooling 3KW/ Heating 1-2KW
- Flow: 45-75L/min
- Voltage: DC240V-DC750V
- Product Model: 3CW for EHE
- Dimension: 447*310*583mm (L*W*H)
Electric heavy equipment has less overall space compared to other electric vehicle. Therefore the design is more difficult and requires the BTMS to be compressed into a smaller size. TKT has a proven battery thermal management system solution.
Note: It is a highly customizable part and we can make it exactly to the customer’s specifications.
More Cooling System for EV Battery Case:
Over the past 10 years, TKT has designed and manufactured Battery Pack Cooling System according to the requirements of different OEM customers, such as BYD, Yutong and Golden Dragon in China, and TATA Motors in India, Daewoo in Korea and other overseas markets. The cooling capacity and heating capacity of Battery Thermal Management System(BTMS) ranges from 3-10KW according to customer’s requirements, which can meet the requirements of different commercial vehicles even if the ambient temperature reaches 60 degrees C or -20 degrees C. TKT also makes roof-mounted Battery Chiller, side-mounted Battery Chiller and chassis-mounted Battery Chiller according to the requirements of different customers.
- More than 10 years of market proof, over 200,000 units in operation worldwide, with quality and performance widely recognized worldwide.
- Patent Design to make higher cooling/heating with less weight;
- Bigger Coolant flow to maintain battery temperature in shortest temperature;
- CAN Control to avoid the wrong operation to damage battery pack;
- Adopt IP67 electric parts, such as electric compressor, water pump, connectors ect;
- Fast OEM/Customized Design (1 month);
- Precise Temperature Control (0.5 Deg.C);
