MiaSolé - Model FLEX-M Series - CIGS based Flexible Thin-film PV Module

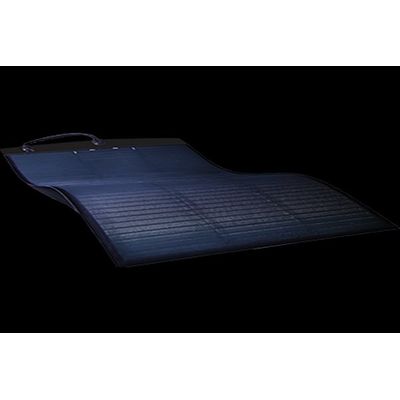

The FLEX Series module is a CIGS based flexible thin-film PV module that provides high power density for many types of roof applications. The panels are the highest efficiency, flexible, thin-film product on the market today, with >17% cell efficiency.
Most popular related searches
thin-film photovoltaic module
photovoltaic module
high power density
flexible photovoltaic module
CIGS
roofing membrane
solar glass
The FLEX-M Series module bonds to the roof surface with a simple peel-and-stick adhesive. This adhesive approach eliminates the need for racking and reduces labor and logistics cost to provide a 20% lower BOS cost than traditional glass solar systems. The FLEX Series module is IEC 61646 & IEC 61730, UL 1703 and Class A over TPO: Slope 2.5:12 certified.
The FLEX-W series provides customers the following significant benefits:
- The low weight of the module
- No roof penetrations, eliminating the worry of leakage and damage to valuable contents within the building
- An aesthetically pleasing solar solution, blending into membrane roofs.
- Superior wind resistance and a seismic advantage over traditional rack-and-panel systems where their higher profile increases the likelihood of damage in a hurricane or earthquake
- Shipping rolled instead of flat to enable a more efficient container size, saving money on freight
| FLEX -03 M Length / Width |
2580 mm (101.6 in, 8ft 5.6in) x 973 mm (38.3 in, 3ft 2.3in) |
| Power class | 350W-390W |
| Aperture Efficiency | 17.5% |
| Certifications | UL 1703, For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or C, IEC 61730, IEC 61646, IEC 61701 (Salt Spray) |
| Warranty | 10/25 year power, 5 year workmanship |
- TPO
- EPDM membrane roofs
