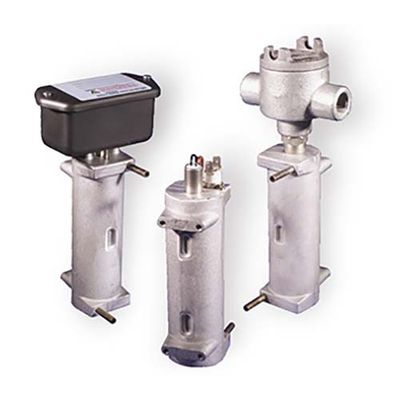

CAST-X - Model 500 -Circulation Heater
APPLICATIONS: Pre-Heating of Oils & Fuels (liquid or gas). Heating of Beverages & Foodservice Liquids. Warming of Inks & Coatings for Converting Industry. Sample Heating for Analytical Instruments. Laboratory Applications. Medical Device Applications.
Most popular related searches
- Fluid Path has No Contact with Heating Elements
- Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
- Allows for Safe Heating of Explosive Gases & Flammable Liquids
- Excellent Performance in High-Pressure Applications
- Suitable for Use with Sterile and Zero Contaminant Processes
- Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.)
- Small Size Enables Easy Integration into Larger Machines
- Self-Draining Flow-Tubes, and Long-Life Heating Elements
Power:
- Up to 1500 W
- Voltage Range: 110 - 240 V
- Max Line Current: 12.5 A
Tubing:
- .250” OD (1/4") (6.3 mm)
- .035” Wall (.89 mm)
- Overall Process Tube Length: 84” (2133 mm)
- 316L Stainless Steel (standard)
- Inconel (optional upgrade)
- Passivated or Electro-Polished (optional upgrades)
- Max Pressure: 5100 psi (351 bar)
Enclosures:
- No Enclosure
- NEMA 1 (general-purpose/dust-proof)
- NEMA 4 (moisture-resistant)
- NEMA 7 (explosion-proof)
Max Working Temperatures:
- No Enclosure: 392°F (200°C)
- NEMA 1 (dust-proof/general-purpose): 250°F (121°C)
- NEMA 4 (moisture-resistant): 250°F (121°C)
- NEMA 7 (explosion-proof): 392°F (200°C)
- Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.
Sensors & Controls:
- K or J Type Thermocouples
- Resistance Temperature Detectors (RTDs)
- Snap-Action High-Limit Switches
(on no housing version)
Available Accessories:
- Insulating Jackets
- Compression Fittings

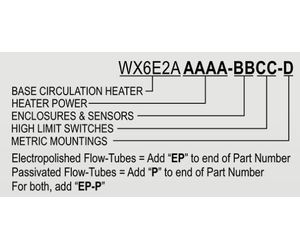

Building a CAST-X 500 Part Number:
Use the tables below to build each section of your CAST-X 500. After assigning letters/numbers for each applicable section, you will have a complete part number, ready to quote.
For assistance, contact CAS directly.
