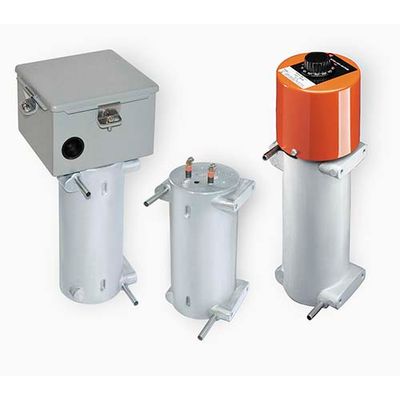

CAST-X - Model 1000 - Circulation Heater
APPLICATIONS: Engine & Compressor Pre-Heating. Solvent Heating for Wet Bench Applications. Hydrogen Peroxide & IPA Vaporization. Commercial Foodservice Machines. Compressor Condensate Evaporation. Steam Generation.
Most popular related searches
circulating heater
steam generation
steam generator
condensing steam generator
vaporizer
evaporative condenser

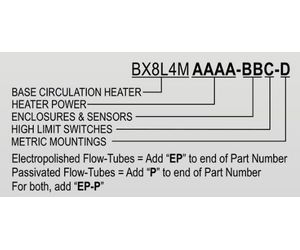

Building a CAST-X 1000 Part Number:
Use the tables below to build each section of your CAST-X 1000. After assigning letters/numbers for each applicable section, you will have a complete part number, ready to quote.
For assistance, contact CAS directly.
- Fluid Path has No Contact with Heating Elements
- Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
- Allows for Safe Heating of Explosive Gases & Flammable Liquids
- Excellent Performance in High-Pressure Applications
- Suitable for Use with Sterile and Zero Contaminant Processes
- Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.)
- Small Size Enables Easy Integration into Larger Machines
- Self-Draining Flow-Tubes, and Long-Life Heating Elements
Power:
- 700 W Total to 3 kW Total
- Voltage Range: 120 - 480 V
- Max Line Current: 15 A
Tubing:
- .313” OD (5/16") (7.9 mm)
- .020” Wall (.5 mm)
- Overall Process Tube Length: 137” (3480 mm)
- 316L Stainless Steel (standard)
- Inconel (optional upgrade)
- Passivated or Electro-Polished (optional upgrades)
- Max Pressure: 2100 psi (144 bar)
Enclosures:
- No Enclosure
- NEMA 1 (general-purpose/dust-proof)
- NEMA 4 (moisture-resistant)
Max Working Temperatures:
- No Enclosure: 662°F (350°C)
- NEMA 1 (dust-proof/general-purpose) no thermostat: 608°F (320°C).
- NEMA 1 (dust-proof/general-purpose) with thermostat: 250°F (121°C)
- NEMA 4 (moisture-resistant) no thermostat 482°F (250°C).
- NEMA 4 (moisture-resistant): with thermostat: 250°F (121°C)
- Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.
Sensors & Controls:
- K or J Type Thermocouples
- Resistance Temperature Detectors (RTDs)
- Snap-Action High-Limit Switches
- Enclosure-Mounted Thermostats
Available Accessories:
- Insulating Jackets
- Compression Fittings
