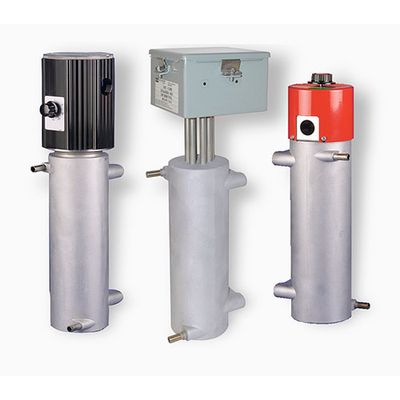

CAST-X - Model 2000 -Circulation Heater
APPLICATIONS: DI Water Heating. Vaporization of Cryogenic Gases & LNG. Two-Part Urethane and Foam Systems. Anodizing & Plating Pre-Wash Heating. Dye Heating for Clothing Manufacturing. Air Heating for Coating Drying Applications.
Most popular related searches
- Fluid Path has No Contact with Heating Elements
- Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
- Allows for Safe Heating of Explosive Gases & Flammable Liquids
- Excellent Performance in High-Pressure Applications
- Suitable for Use with Sterile and Zero Contaminant Processes
- Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.)
- Small Size Enables Easy Integration into Larger Machines
- Self-Draining Flow-Tubes, and Long-Life Heating Elements
Power:
- 1 kW Total to 6 kW Total
- Voltage Range: 120 - 575 V
- Max Line Current: 25 A per circuit
Tubing:
- .50” OD (1/2") (12.7 mm)
- .065” Wall (1.7 mm)
- Overall Process Tube Length: 150” (3810 mm)
- 316L Stainless Steel (standard)
- Inconel (optional upgrade)
- Passivated or Electro-Polished (optional upgrades)
- Max Pressure: 5100 psi (351 bar)
Enclosures:
- NEMA 1 (general-purpose/dust-proof)*
- NEMA 4 (moisture-resistant)*
- NEMA 7 (explosion-proof)
- *Available with Standard or Standoff Design
(just need to put asterisk before Available)
Max Working Temperatures:
- NEMA 1 (dust-proof/general-purpose): 482°F (250°C)
with standoff: 662°F (350°C)
with t-stat (w/ or w/o standoff: 250°F (121°C) - NEMA 4 (moisture-resistant): 350°F (175°C)
with standoff: 662°F (350°C) - NEMA 7 (explosion-proof): 482°F (250°C)
- Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.
Sensors & Controls:
- K or J Type Thermocouples
- Resistance Temperature Detectors (RTDs)
- Snap-Action High-Limit Switches
- Enclosure-Mounted Thermostats
Available Accessories:
- Insulating Jackets
- Compression Fittings

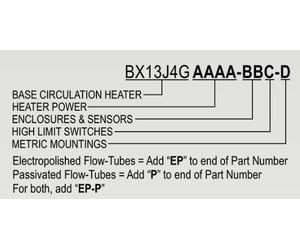

Building a CAST-X 2000 Part Number:
Use the tables below to build each section of your CAST-X 2000. After assigning letters/numbers for each applicable section, you will have a complete part number, ready to quote.
For assistance, contact CAS directly.
