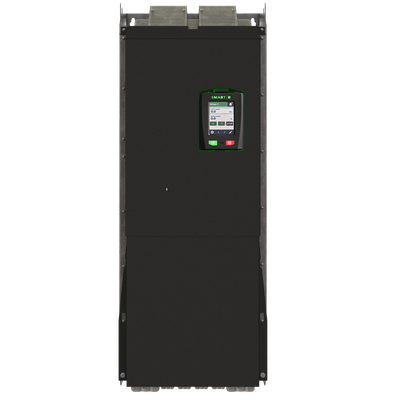

SmartD - Model SDB-1-2220-A | 3~480V 22kW-30 HP - Clean Power Variable Frequency Drive
The SmartD Clean Power Variable Frequency Drive (VFD) implements advanced technologies such as Wide-Bandgap (WBG) transistor technology and proprietary algorithms to deliver a clean sine wave, enhancing the operation of 3-phase AC induction motors. This VFD minimizes electrical noise and energy consumption while offering features like ultra-low harmonics and regenerative braking. Designed to eliminate the need for additional filters, it ensures reduced motor stress and prolonged lifespan. The compact design facilitates easy integration within restricted spaces while offering Ethernet and Modbus connectivity for IoT, BMS, and SCADA system integration. The active front end results in a near-unity power factor, boosting overall energy efficiency. With a rated output of 41A for inputs of 3x 480V, this drive ensures consistent, reliable motor control and is a testament to SmartD's innovations in motor control technology. It offers a streamlined selection process to fit varied technical needs without unnecessary complexity.The SmartD Clean Power Variable Frequency Drive is a compact AC drive utilizing SmartD’s patented own algorithms combined with WBG transistor technology. Producing a clean and pure sine wave to power and control 3-phase AC induction motors has never been easier. The SmartD VFD has essential features built-in for space, wiring and time savings, it eliminates the need for filters on the output, and guarantees longer motor lifetime.
- Variable frequency drive for AC motors
- Pure sine wave 3-phase power output
- Clean Voltage sine wave, V/f open and close loop
- Field Oriented Control open and close loop
- Multifunctional, digital and analog IOs
- Built-in torque deactivation inputs
- 24 VDC power supply input
- Dual Ethernet port
- Fire emergency mode
- Configurable Linear ramps
- Starting torque boost
- Integrated EMC filters
- Set, monitor, control it with an app
- Pluggable display
- Natural language user interface
Ultra-low harmonics
Clean Power VFD offers ultra-low harmonics, reducing electrical noise and increasing energy efficiency for your equipment.
Filter-less
Clean Power VFD is filter-less, providing cost-effective and maintenance-free operation for your equipment.
Active Front End (AFE)
Clean Power VFD features an active front end, enabling power factor near unity, ultra-low harmonics and regenerative braking for improved energy efficiency.
Space divided by 2
Clean Power VFD being of compact design, and eliminating the need for filters, saves up to 50% of space and simplifies equipment wiring.
Clean signal
Clean Power VFD using the last technology of electronic power components, patented algorithm and embedded filters, it produces a clean sine wave.
Extended motor lifetime
Clean Power VFD’s advanced performances reduce motor insulation stress, bearing damage, and electrical noise for a longer motor lifetime.
