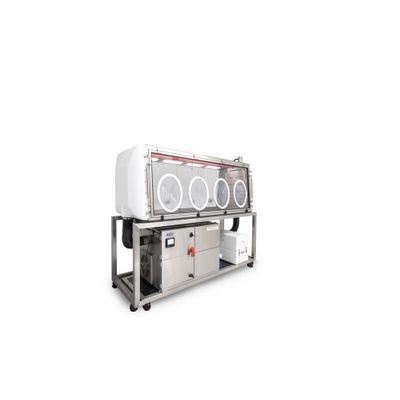

CTS - Model ClimateZone -Climatically Controlled Enclosure

FromCTS Europe Ltd.

SHARE

ClimateZone Enclosure systems are designed to provide a safe, climatically controlled environment for the handling of sensitive pharmaceutical drug compounds. The ClimateZone air treatment unit provides users with a variety of selectable temperature and humidity profiles, which are automatically maintained.

Most popular related searches

climate controlled environment

control enclosure

CONSTRUCTION
• Stainless steel skeletal frame and bench
• 8mm Optically clear cast acrylic panels
• Black Trespa base

DIMENSIONS (mm) - (WxDxH)
External:
1500 x 750 x 1650
2000 x 750 x 1650
2500 x 750 x 1650

Internal:
1220 x 700 x 725
1720 x 700 x 725
2220 x 700 x 725

• Glove port options available
• Custom built solutions available
• IRIS ports fitted as standard

TEMPERATURE RANGE · HUMIDITY RANGE
• 17°C-30°C (+/-1°C) · 20%RH-80%RH (+/-3%)
• Customisable to operate at profiles outside standard ranges

HUMIDITY CONTROL
• UV water treatment system
• Continual water filtration system

POWER REQUIREMENT (SINGLE PHASE)
• 230v/50Hz/13A Service (EU)
• 110v > 220v/60Hz/20A Service (USA & Mexico)

AIRFLOW MONITORING & FILTRATION
• Continual airflow monitoring using a hot wire anemometer complete with Audible / Visual alarm
• Safe change HEPA filtered environment
• Min 99.995% efficiency at 0.3 microns (H14)
