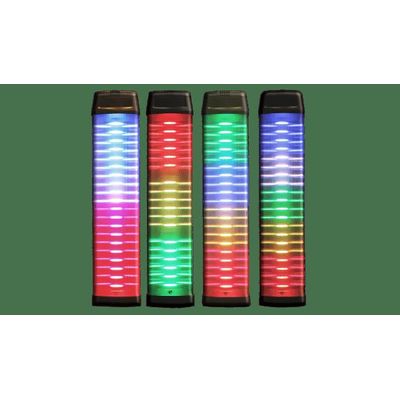

Caron Engineering - CNC Machine Status Smart Light System
Caron Engineering`s customizable CNC machine status Smart Light System provides an easy assessment of a part`s progress on a CNC program. A standard machine status light, or stack light, is used in an industrial manufacturing or process control environment to deliver real-time visual feedback to machine operators, technicians, production managers, and other factory personnel. While traditional stack lights have limited indicators showing basic machine status, the Smart Light offers over 1000 configurations that can be custom-programmed for any machine status of condition indication. with the aid of custom-programmed LED lights. With intuitive operator screens, the user can preconfigure recipes for basic light outputs, or use direct set protocol for advanced control of the light stack to dynamically change the light to correspond directly to an extensive number of manufacturing steps.
- 1000 available modes, 0-255 available via direct I/O
- 6 different colors (white, green, blue, yellow, red, orange), plus one (1) user-defined color
- Use multiple protocols at the same time
- Lights can be mounted/installed anywhere on the machine
- Can directly replace existing status light
- Lights can be in "Steady State", "Blinking", "Flashing" or all 3 at the same time
- Programmable audible alarm
The CEI Smart Light System offers a variety of modes and color options for any status indication. Modes include: Single Color, Level Mode, Segment Mode, and Run Light Mode. The status lights can be in Steady State, Blinking, Flashing, or a combination of all three at the same time. With a seemingly endless combination of color combinations and programmable buzzer tones, any machine status can be easily conveyed to operators from a distance, reducing the need for continual hands-on inspection that requires additional personnel and time. LED Smart Lights can be programmed to display unique colors, patterns, or color combinations to reflect the below statuses and countless other industry or machine specific scenarios not mentioned:
- Machine warmup state
- Transitional states
- Process or stage time remaining
- The machine requires attention from an operator
- Tool wear conditions are present
- Laser measurement is in progress or has been completed
- Machining is complete
- Countdown timers
- The machine requires additional supply (i.e. bar feeder is on the last bar)
