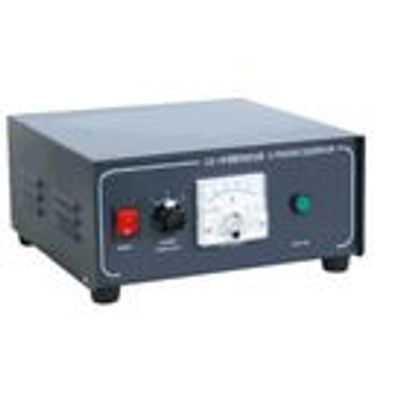

FYCG - Model ZJS-100 -Cnc Power Supply Ultrasonic Generator for Welding

Ultrasonic generator, also called ultrasonic drive power supply, electronic box, control box, is an important part of high-power ultrasonic system. The main function of the ultrasonic generator is to generate high-power high-frequency alternating current to drive the ultrasonic transducer to work.

 The Chen Gong brand ultrasonic generator has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can automatically, quickly, accurately and continuously perform ultrasonic driving work.

1. The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic systems.
2. Can adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time, etc.

• Automatic follow-up: Once the device has completed its initial setup, it can continue to operate without the need to adjust the generator.
• Automatic amplitude control: When the load changes during the operation of the transducer, it can automatically adjust the driving characteristics to ensure that the ultrasonic tool head has a stable amplitude.
• System protection: When the system works in an unsuitable operating environment, the generator will stop working and display an alarm to protect the equipment from damage.
• Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the work. The setting range of the amplitude: 0% ~ 100%.
• Automatic frequency search: The working frequency of the tool head can be automatically determined and stored.
