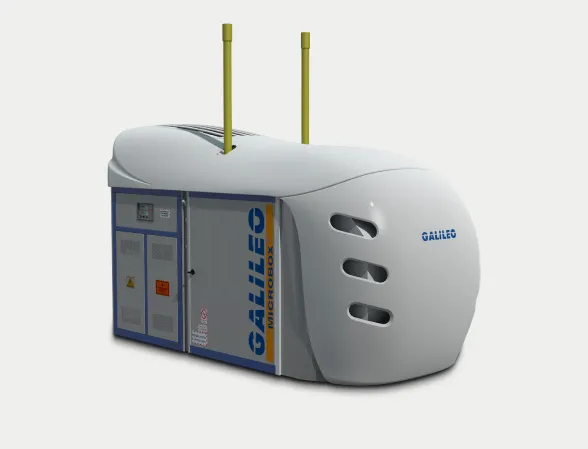

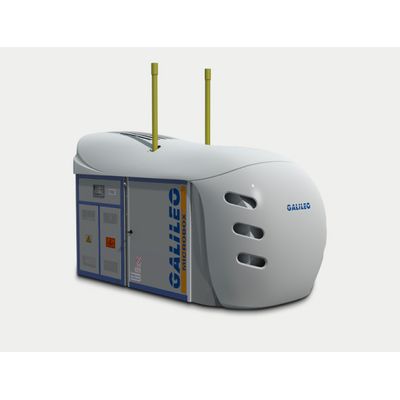

GalileoModel Microbox - CNG Compressor Packages

SHARE

Our Microbox CNG compressor packages are intrinsically safe and do not require concrete walls around the perimeter. A gas reciprocating compressor, a pressure regulation plant, an electrical board and a measuring system are combined into a single module and require just a single authorization. As a result, our plug-and-play configuration simply requires a small amount of space and allows for high-rise installations in CNG filling stations and in a variety of other industries.

Most popular related searches
Fuel production Compressed Natural Gas (CNG)
  Compressed Biomethane Gas (Bio-CNG/CBM/CBG)
Rated power (kW) 75-400
Suction pressure (bar) 0.1-60
Discharge pressure (bar) 250-350
Flow (Sm3/h) 300-6,000
Internal storage capacity (litres) 1,000
Dimensions Length (m) 5.100
  Length with open doors (m) 6.600
  Width (m) 2,200
  Width with open doors(m) 5,725
  Height (m) 2.800
Weight (t) 9
Users Medium and large fleets
  CNG public and private filling stations
  Peak shaving applications
  Industrial facilities
  Virtual Pipeline™ system mother stations
  Biomethane plants
Operation Remote monitoring
  Compliance with international standards
  Low maintenance
  Low operating cost
