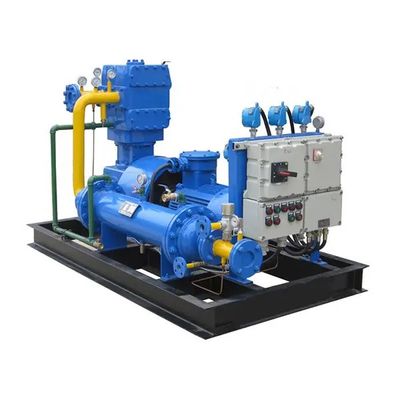

Huayan Gas - CNG Station Natural Gas Piston Compressor
Piston compressor is a kind of piston reciprocating motion to make gas pressurization and gas delivery compressor mainly consists of working chamber, transmission parts, body and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, the volume of the working chamber on both sides of the piston changes in turn, the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas. We have various gas compressors, such as Hydrogen compressor, Nitrogen compressor, Natrual gas compressor, Biogas compressor, Ammonia compressor, LPG compressor, CNG compressor, Mixed gas compressor and so on.
Brand: Huayan Gas
Place of Origin: China·Xuzhou
Compressor structure: Piston Compressor
Volume flow: 3NM3/hour~1000NM3/hour (customized)
Voltage: 380V/50Hz (customized)
Maximum outlet pressure: 100MPa (customized)
Motor power: 2.2KW~30KW (customized)
Noise: <80dB
Crankshaft speed: 350~420 rpm/min
Advantages: high design exhaust pressure, no pollution to compressed gas, good sealing performance, corrosion resistance of optional materials.
Certificate: ISO9001, CE certificate, etc.
- High quality material, Stable & Reliable operation
- Low Maintenance cost & Low noise
- Easy to install on site and connect with the user's pipeline system to operate
- Alarm automatic shutdown to protection machine function
- High pressure and flow
Lubrication includes: oil lubrication and oil free lubrication;
The cooling method includes: water cooling and air cooling.
Installation type includes: Stationary, Mobile and Skid Mounting.
Type includes: V-type, W-type, D-type, Z-type
