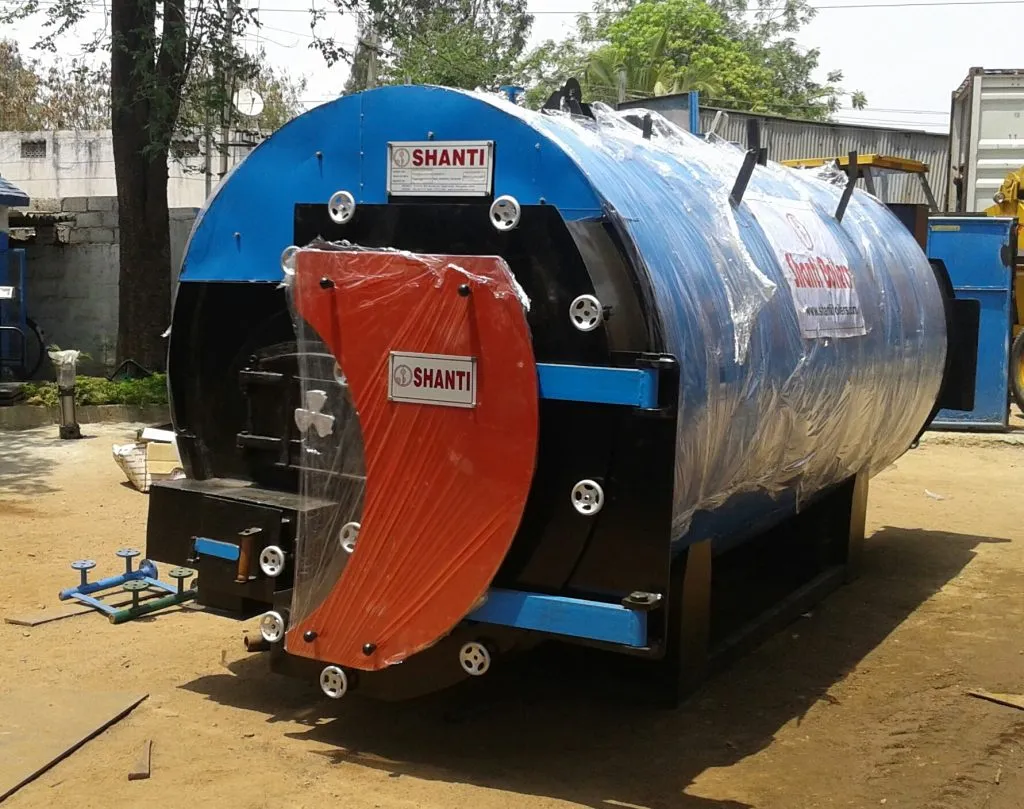

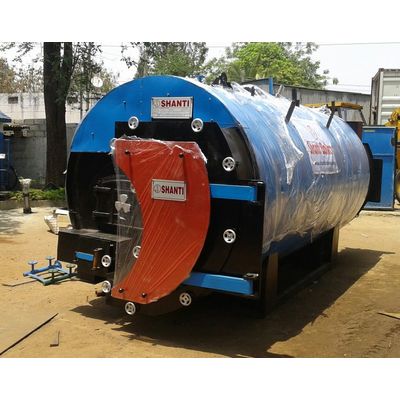

Shanti - Model SF Series ( WB/SWB/DB) - Coal Fired Packaged Boilers
Keeping the ever increasing fuel cost , Shanti’s Internal Furance Packaged Skid mounted Solid Fuel fired Steam Boilers are optimally designed to give maximum operational efficiency to our Boiler users . These boilers are are smoke tube , three pass , multi tubular wet back in design for achiving maximum operational efficiency . These Boilers offer flexibility on the usage of multi fuels like Coal , Wood , Wood Waste , Briqquetes , Coconut & ground nut shells.
Evaporation capacity : 300 kg/hr. To 5000 kg/hr.
Working Pressure : 7 kg/sqcm, 10.54 kg/sqcm to 17.5 kg/sqcm
Firing Mode : Manual
- Skid mounted ensures negligible site work .
- Higher steam space to ensure dry steam
- Optimal heating surface for quick steam output
- Optimally designed tube nest in 2nd & 3rd Pass to derive maximum efficiency
- Easy access of maintenace and tube cleaning
- Balanced draft design for efficient combustion of fuel in furnace
- Use of superier quality valves and fittings ensure durability and negligible maintenace
- Single and Twin furnace design avaliable
- All safety interlocks for safe operations
Suits all industrial applications like dyes, drugs & pharmaceuticals, chemicals, food industry, paper & plywood, agro based industries, dairy and other process industries.
