Coaxial Ring Electric Field Device

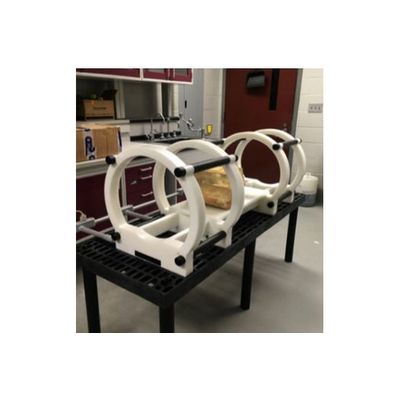

Prototype device at left is 8’ long with a 35” diameter. ~600 lbs., sized for human patients. Prototype device at right is 4’ long with an 18” diameter, shown here treating mice. Both devices use wall power, generate no heat, require minimal shielding and no floor supports. Commercial veterinary device will be between the two sizes. Device ensures a uniform electric field throughout the patient area and a pulse pattern optimized to open sodium channels. Designed and manufactured by The Phantom Laboratory in Greenwich, NY.
