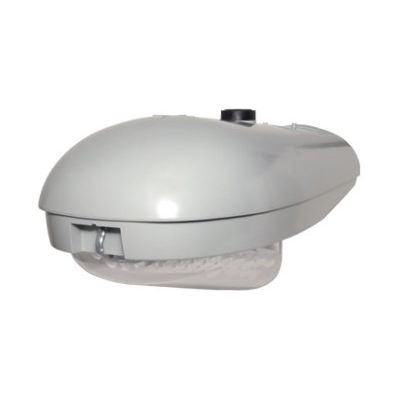

LEDtronics - Model M400 -Cobra Head LED Street & Roadway Lights
5 Year LEDtronics Warranty. UL / cUL Listed, E330342. Life Expectancy:Based on 12 hrs/day = 11.4 years. Over 50,000 hr LED. Lumen Maintenance over 70%. Very Low Power Usage:A Reduction of 193 Watts from the Standard 250W HPS Lamp (with 16-25 Watts Transformer Loss). Standard Fixtures:LED Cluster Works with GE Model M400 and AEL 125 Cobrahead Fixtures. Cooler Operation:Lamp Assembly Ventilation Aids in Maintaining Cool-Running Lamp. Weatherproof:Entire Lamp Assembly Is Sealed to Provide Added Protection from Adverse Environmental Conditions. Efficient Design:LEDs Are Mounted to Provide Maximum Luminance at Desired Angles. Highest-Grade LEDs:Uses Premium White Lighting-Class LEDs that Are Test-Verified to LM-79 Standard. Lab Tested in Accordance with IES Standards. Solid-State: High-Shock & High-Vibration Resistant. 30+ Years LEDtronics Design & Manufacturing.
- Color Pure White
- Color Tem 5500K to 6350K
- Voltage 100-277VAC
- Power 80 W
- Current 0.58 A to 0.78 A
- Power Factor 0.99
- Efficacy 59 lm/W
- Lumens 4749 lm
- Max Candela 3236cd
- CRI 76
- Viewing Angle 2×40°@40°L, 40°@15°W
- Illum Pttrn Type III (Asymm)
- Weight (approx) 20 lbs [9.1kg]
- Suitable for Damp Location Fixtures
- Ideal for Canopies, Pedestrian Tunnels, Stairwells, Corridors, Garages and Parking Structures
- Five Year Warranty
- LEDtronics lamps are designed for 50,000 hours of continuous operation.
- LEDs are mounted to provide maximum luminance at desired angles to the area to be lighted.
- Lab tested in accordance with IES Standards.
- Solid-state, high-shock/vibration resistant.
- Long-life LEDs are maintenance-free for over 5 years of continuous use.
Note: Any ballast that functioned with the replaced lamp needs to be bypassed (Operating Voltage 100-277 VAC)
When Installing Lamps In Potentially Corrosive Outdoor Environments
LEDtronics suggests that a silicone moisture-barrier sealant be used to protect the metal-threaded base of the LED bulb.
Sealant is highly recommended for all outdoor-environment LED bulb installations to prevent water and/or moisture incursion that can lead to premature degradation of the bulb base and eventual bulb failure. This is especially recommended for LED bulb installations near saltwater bodies.
Dow Corning Molykote® 111 Valve Lubricant and Sealant is a high-temperature, moisture-resistant, silicone grease. If liberally applied to the clean surface of the lamp socket and the base of the lamp itself, it will provide moisture and corrosion resistance.
