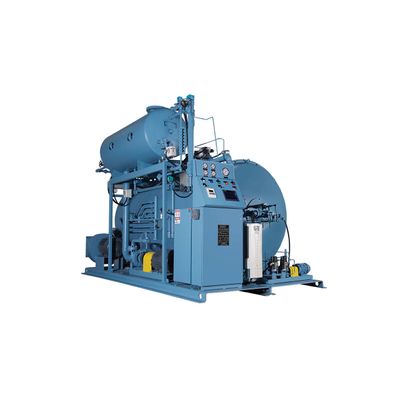

Thermogenics - Coil Tube Steam Boiler

• Redesigned combustion air blower ensures quiet operation.
• Redesigned damper blades on combustion blower provide lower excess air levels.
• Redesigned burner increases efficiency.
• PLC based flame safeguard with optional linkage-less control.
• 4-20 ma modulation for feedback to PLC based Lead/Lag Control.
• Completely flexible on burner management systems.
• Solid state coil temperature system with individual temperature readouts and set points.
• Pneumatic or electric feedwater control systems.

• Fully modulating burner with 8-1 turndown on Natural Gas and #2 Oil.
• Switch controls and warning devises located in a central control panel at the front of the boiler skid for ease of operation and trouble shooting.
• All coils have individual monitoring sensors.
• Automatic timer controlled bottom blowdown.
• Manual continuous blowdown or optional automatic TDS control available.
• Steam separation drum guarantees 99% plus dry saturated steam.
• Heavy duty gauge glass assembly.
• Rear door access at floor level without disturbing refractory seal.
• All electrical boxes are oil/dust tight.
• All electrical conduit liquid tight.
• Separate high voltage side panel.
• Combustion air blower at floor level for ease of inspection and maintenance.
• Recirculating pump and combustion blower direct drive.
• Most service connections located at common junction point.
• Double walled boiler shell preheats combustion air and cools outer casing, thereby minimizing radiation losses.
• Fuel to steam efficiencies up to 85% with heat recovery.

Automatic Packaged Recirculating Coil Tube Generators for unattended operation in specific jurisdictions. Low and High Pressure Steam applications from 75 to 600BHP.

• Capacity – 75 BHP to 600 BHP output.
• Pressure – Standard 15 PSIG to 500 PSIG or higher as specified.
• Fuels – Natural gas and Number 2 oil.
• Efficiency – Up to 85% efficiency with economizers.
• Codes – ASME, NATIONAL BOARD or as specified.
• Complies with local code requirements as applicable.
• Environmental – Compliance with current noise and emissions regulations.
