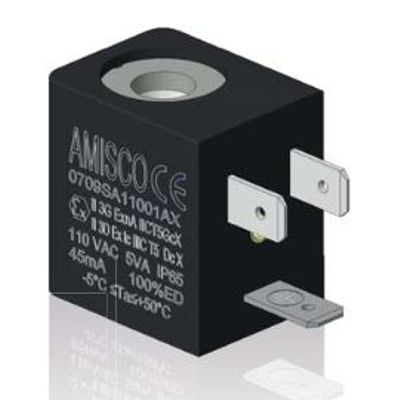

Atex - Coils
FromAMISCO S.p.a.
Amisco has completed its range of products developing different kind of coils for potentially explosive ambient (zone 1 and 2, 21 and 22 - group II - category 2 and 3), that fulfils the requirements of directive 20U/34/UE.
Most popular related searches
The coils can be equipped with the suitable plunger guide tube or even in combination with a complete pilot valve. In this case refer to 22mm 30mm pilot valve system catalogue. The coil is fastened to the solenoid operator by means of a knurled nut for ease of change over without interrupting the pneumatic circuit.
- heat resistant bobbin moulded with 30% glass filled thermoplastic polyamide or polybutylene terephthalate.
- class H wire 200°C according to IEC 60317-13
- built-in magnetic yoke made by low carbon iron
- encapsulation with high quality specially designed glass filled nylon
- for category 2 product, a special thermal-fuse is integrated in the coil for the protection of the system
