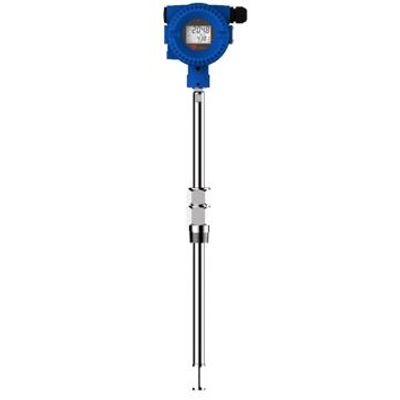

Comate - Model TGF600 -Inline Thermal Gas Flowmeters

• 100:1 turndown, lower limit to 0.3Nm/s support from 1”~80”pipe
• Temperature range up to 450 °C
• Depth scale for precise installation
• Insertion type to 16bar, special version up to 63 bar
• No moving parts, industrial sensor more robust and easy to clean
• Unique anti-ejection densign support install and remove without stop the line
• IP 67 protection.Robust water-proof housing for the indoor/outdoor area

• Compressed air, Natural gas, biogas, Oxygen, Argon, Hydrogen, special area
• Coal, power, Incineration, Landfill gas, Petrochemical industry and gas measurement in Heating supply system
• Flare gas, etc high temperature gas measurement

• Inline type can be installed/removed without stopping the line
• Can be used on pipelines in difference shape
• Minimum flow rate down to 0.3m/s, 1:100 super wide turndown ratio
• No moving part, almost no pressure loss
• Direct mass flow measurement, do not require temperature or pressure compensation
• Isolated design for electrical parts to eliminate interference
• Optimized power efficiency design, supper low power consumption down to 60mA@24VDC
• Adapted to any power source
• 2 lines LCD display with unit displaying
• Standard output is pulse and RS485, Hart@4~20mA and 4~20mA is available
• Metric/British Unit selectable
• Password protecting function and self-diagnose function

TGF600 Series inline thermal gas flowmeters measures the gas mass flow base on thermal dispersion theory. It combines COMATE’s advanced technology on transmitter, sensor, filming and calibration, can provide stable and accurate measurement even under harsh industrial applications and require very less maintaining.
