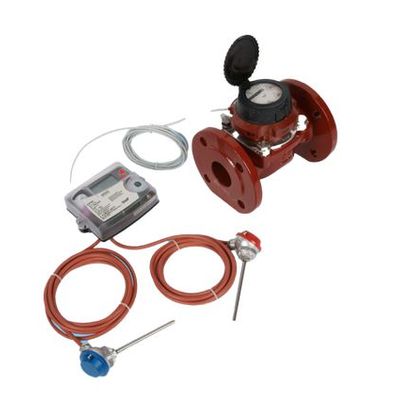

GWF - Model CF-51 und CF-55 -Combined Heat and Cooling Meter for Large Measuring Points
FromGWF AG
Metering of heat and/or cooling consumption in building management. Energy measurement for local or remote reading. Application for large measuring points.
Most popular related searches
heating and cooling
energy output
energy measurement
heat meter
mount power supply
building energy management
power meter
building energy
energy management
- Big display:
- Easy to read - Universal applicable:
- Wall-mounted model
- Different power supply possibilities - Option cards for diverse functionalities:
- Economical base device
- Additional functionalities feasible
- Special version for combined heat/cold measurements (special programming)
- Option cards for:
- M-Bus / water meter inputs
- M-Bus / 2 pulse outputs
- Heat energy: Output Heat energy + volume
- Heat and cooling energy: Output Heat and cooling energy
- M-Bus Power / 2 water meter inputs
- Double M-Bus (only CF-55)
- LonWorks, FTT-10A / 2 water meter inputs (separate supply 24 V AC/DC necessary)
- Modbus RTU (RS485) / 2 water meters inputs (Power supply module 230 V AC necessary)
- Electronic calculator and LCD-resolution 7 digits
- Temperature measuring range 0 - 180 °C
- Temperature sensor Pt 100
- CF-51: 2-wires
- CF-55: 2- or 4-wires - Non-volatile memory EEPROM and 24 month register
- Supply via 12-year battery, mains or M-Bus (pay attention to versions)
- Maximum values with time stamp
- Can be combined with the following volume measuring meters:
- Mechanical impeller meters
- Ultrasonic meters with Reed-pulser
- MID - Standard EN 1434
