Estel - Model FCA-90/AR-600A - Combined Power Unit

FromTallinna Elektrotehnika Tehas Estel AS

SHARE

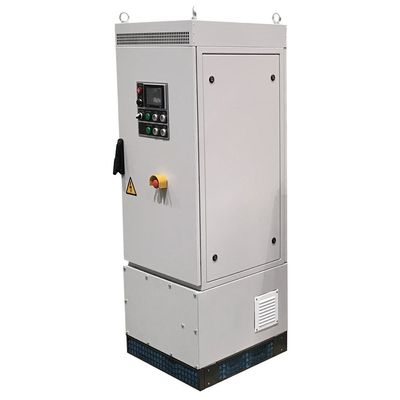

Combined power unit FCA-90/AR-600A consists of frequency converter 400 Hz and 28 V rectifier. The unit is designed to supply aircafts and helicopters during preflight maintenance at the airport. It can also be used as a power unit of test benches, hangars and aircraft manufacturing plants. Can be manufactured both in standard complete set and according to Customer’s special requirements and adjustments. Could be manufactured in mobile, stationary and aerobridgeversions.
