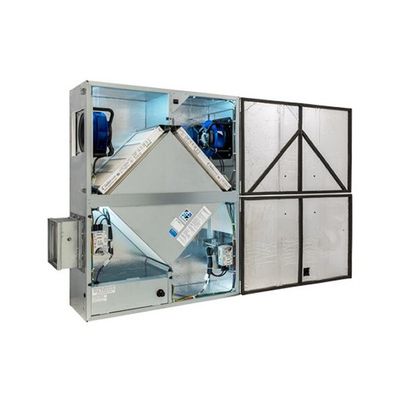

RenewAireModel HE07IN -Commercial ERVs — Packaged Solutions

SHARE

Application Type:Indoor. Ventilation Type:Static plate, heat and humidity transfer. Typical Airflow Range:166-694 CFM. AHRI 1060 Certified Core:One L85-G5. OA Filter(s):Total Qty. 1, MERV 8: 14" x 20" x 2". RA Filter(s):Total Qty. 1, MERV 8: 14" x 20" x 2". Dimensions:40 1/4" L x 17 1/2" W x 50 1/4" H. Weight:148-278 lbs. (varies by option).

Most popular related searches
  • Installation Location : [IN] Indoor Unit
  • Electrical Service
    • [11] 120V / 1 Phase / 60 Hz
    • [15] 208-230V / 1 Phase / 60 Hz
  • Fan Control
    • [G] Terminal Strip For EC Motors
  • Supply Air Motor
    • [A] Advanced EC Direct Drive Motorized Impeller
    • [B] Intermediate EC Direct Drive Motorized Impeller
    • [E] ECM - Direct Drive Motorized Impeller
  • Exhaust Air Motor
    • [A] Advanced EC Direct Drive Motorized Impeller
    • [B] Intermediate EC Direct Drive Motorized Impeller
    • [E] ECM - Direct Drive Motorized Impeller
