Envirosafe - Model 5,000 Gallon -Commercial Fleet fuel systems

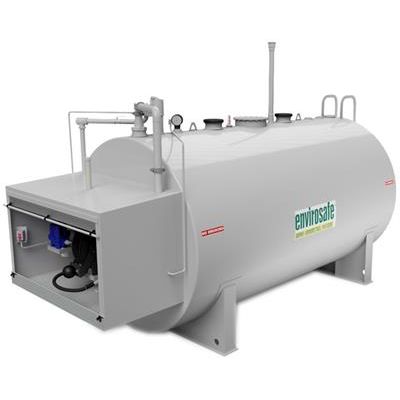

The Commercial Fleet System comes with a lockable equipment box that’s welded to the head of the tank. The lockable equipment box is for both dispensing and filling the tank. The lockable box comes standard with a R.O.M. roll-up door. Inside the box, the piping coming from the pump is connected to 2” ball valve and spin on fuel filter to the total controls piston meter with a 10:1 pulsar that’s weights and measures approved. To the left of the meter is the on/off pump switch. It comes standard with a 25’ hose, swivel, break-away, and automatic shut-off nozzle on a spring-loaded Hannay hose reel.

The standard pump installed on the Commercial Fleet system is a Franklin Fueling FE Petro ¾ hp Submersible Pump. The pump is piped down to and inside the lockable box using painted 2” schedule 40 pipes, Franklin Fueling 2” 636 anti-siphon valves, and 2” ball valve. This set-up gets approx. 22 gpm out of the nozzle. All piping fitting are Gruvlocks with T gasket for fuel.

The bottom of the lockable box is cross broken with a ball valve to drain the box and epoxy-lined for easy clean-up during filling or dispensing operations. The fill pipe has a 3” camlock with 3” ball valve and checks valve for ground-level filling. The drop tube inside the box has a diffuser to disperse the fuel across the bottom of the tank evenly. Also, the Commercial Fleet system comes standard with a Morrison Bros. overfill prevention valve set to shut-off filling operations at 95% capacity. To the right of the fill connection, you will find the Morrison Bros. 918 high-level alarm set to sound at 90% capacity. The Envirosafe Commercial Fleet comes with emergency vents installed and atmospheric stack vent shipped loose. Also comes with Morrison Bros. Clock Gauge for fuel levels and an interstitial leak gauge to monitor the interstice of the tank. A monitoring port to manually stick the tank. This system is one of our patented trademark systems that arrives turn-key ready to operate. Just hook-up power and fill it with fuel, and you’re off and running!

(1) UL-142 Flameshield or UL-2085 Fireguard Tank Mounted on Saddles
(2) 8” 8 Oz Emergency Vent Male w/O-ring
(1) Monitoring Well w/ 2” Cap
(1) 3” Stack Vent w/ 3” Updraft Vent
(1) High Level Shut-off Valve with test mechanism & 3” Ground Level Fill (Vertical Check Valve, Ball Valve, Fill Pipe w/ Diffuser, Fill Adapter, & Dust Cap)
(1) 2” 918 Clock Gauge w/ Alarm & Standard Float for Accurate Fuel Level Reading
(1) Ladder w/Safety Shield
(1) Total Control 682-15 Piston Meter with 10:1 Pulser
1) UL Listed Lockable Dispensing Box Welded on Tank 3’6”x4’2”x6’6”, Cross Broken for Easy Drainage, 2” Vent, 2” Mushroom Cap, & 1/2” Ball Valve
(1) 3/4 Hp. Pump Assy w/Anti-Syphon Valve & Ball Valve
(1) (Diesel Assembly) 1” Hose Reel with 25′ X 1” Hose, Ball Stop, 1” Nozzle, Breakaway and Swivel
OR (1) (Unleaded Assembly) 3/4” Hose Reel with 25′ X 3/4′ Hose, Ball Stop, 3/4′ Nozzle, Breakaway and Swivel
(1) Electric Packages for Pumps and Switches
(1) Envirolastic 940 DTM Polyaspartic Urethane for High Performance Finish
(1) Tank Decal Kit
(1) Interstitial Leak Gauge
(1) ROM Door (Roll Up) 3’x6′
(1) 1.5” Filter Adapter and 1” Filter
(1) 18” Manway for easy inner tank accessibility
(1) UL Labeled & Listed (Per you local Fire Marshall)
STEEL THICKNESS 1/4” SHELL & 5/16” HEADS
(6) 1” Replacement Fuel Filters
(1) Touch-up Paint

• Tested Two-Hour Fire Resistance
• Built to UL 142 Standards
• Tested by Southwest Research Institute to SwRI 97-04
• Double-Wall Tanks Have Fully Monitorable Interstitial Space for Leak detection
