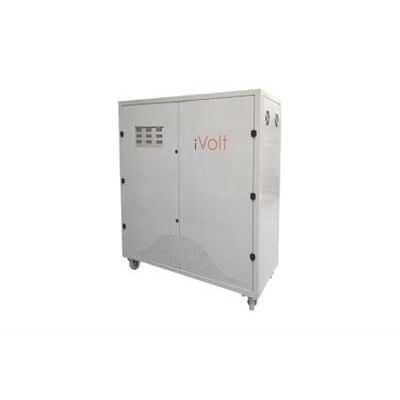

iVolt - Model 3 Phase: 100-3000A -Commercial Voltage Stabilisation

Maximum savings giving faster ROI’s across wide range of applications including;

• Education
• Hospitals
• Retail
• Airports
• Train Stations
• Offices
• Hotels & Leisure
• Restaurants
• Manufacturing

• Technology: Microprocessor controlled transformer tap selection using thyristors
• Capacity: 32A to >3000A
• Efficiency: 99.4% at full load
• Response time: 15ms
• Input voltage range: 253/438 volts down to 220/380 volts
• Output voltage range: 220/380 volts, adjustable
• Output accuracy: ± 1.5%
• Phase control: Three phases balanced independently
• Frequency: 47Hz to 75Hz
• Waveform distortion: <0.25%
• Transformer materials: Low loss electrical steel core with high purity copper conductors
• Conductor Insulation class: Class H
• Temperature class: Class B
• Operating temperature: 0 – 55ºC
• Operating humidity: 95% non-condensing
• Ingress protection: IP21
• Overload capacity: 150% for 4 minutes
• Standards: BS EN 61558-1 2005, EN61000-6-4, IEC 61000-4-3, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
• Expected Service life: >25 years
• Warranty: 15 years (parts and labour) on all transformer windings and electronic control boards

• Circuit breaker(s): Input and/or output circuit breakers
• Manual bypass: External manual bypass including isolation
• Auto bypass: External auto bypass including circuit breaker for isolation
• High level surge protection:
• Class 1 and 2 spike and surge protection
• Protection L – N: 25kA @ 10/350μs
• Protection N – PE: 100kA @ 10/350μs
• Voltage protection level: 1.5kV
• Remote monitoring system: Connection to energy management or building management systems
• Harmonic reduction transformer: Reduced power harmonics from supply and load
