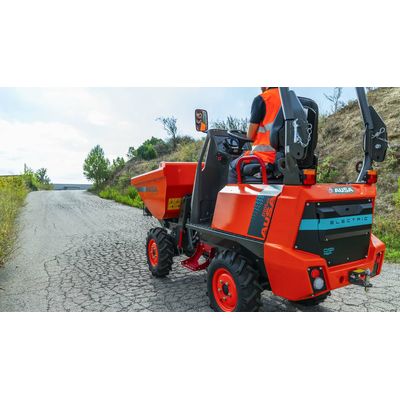

AUSA - Model D101AEA - Compact Electric Dumper

FromAUSA
SHARE

The D101AEA Compact is AUSA's most compact electric dumper. It has a 1,000 kg (2,200 lb) payload and hi-tip skip, which is capable of lifting and tipping at a height of up to 1.6 meters (5.2 ft). It is only 100 cm (39 in) wide, so it can pass through doors in buildings and homes, making it the perfect partner for handling indoor demolition debris. This all-terrain dumper is as powerful as similar vehicles with diesel engines. In addition, it has been designed with a working range of at least one intense shift.

Most popular related searches
lithium battery
lithium ion battery
integrated charging
diesel engine Additive
diesel engine
battery capacity
power engineering

General

  • Unloading system: High tip
  • Load capacity: 1000 kg
  • Chassis: Articulated
  • Water skip capacity: 345 l
  • Level skip capacity: 395 l
  • Heaped skip capacity: 565 l
  • Empty weight: 1430 kg
  • Transmission: Electric
  • Reversibility: Non-reversible

Battery

  • Battery type: Lithium-Ion Battery (NCM)
  • Gross capacity: 9.3 kWh
  • System voltage: 48 V

Range

  • May vary according to weather conditions and use. For temperatures below 0ºC, it is recommended to include the Additional battery for longer range (+3.1 kWh): One intense shift

Charge

  • Charger: Integrated
  • Charging time 20 80% - May vary according to weather conditions and the type and power of the charging point: 2 h (230 V)
  • Charging time 20 80% (fast charger) - May vary according to weather conditions and the type and power of the charging point: 1 h (400 V)
  • Charging cable plug type: 110 V (yellow); 230 V (blue); 400 V (red)

Engine

  • Peak power: 19.6 kW
  • Nominal power: 7.6 kW
  • Torque: 130
  • Emissions: Zero emission
  • Noise level (LwA): -

Driving

  • Max. speed: 14 km/h
  • Maximum gradient: 35 %
  • External turning radius: 3080 mm
  • Traction: 4x4
  • Tyres: 6.5/80-12

Hydraulic system

  • Hydraulic circuit: 12 cc gear pumps
  • Flow rate: 28 l/min
  • Working pressure: 180 bar

Tank capacity

  • Hydraulic system: 24.5 l

Brakes

  • Service: Hydraulic
  • Parking: Negative
