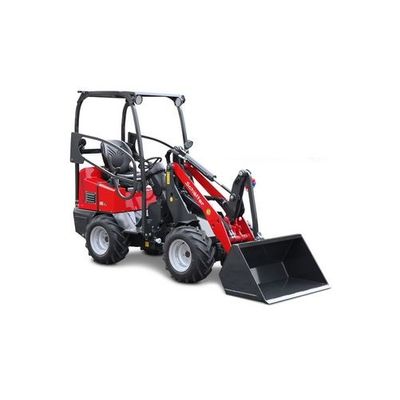

Schäffer - Model 16e - Compact Electric Loader
The electric yard loader 16e masters even the tightest working environments with ease. Based on the proven 1622 model, the 16e offers emission-free working and opens up new application possibilities in stables and agricultural facilities where manual labour or larger machines were previously required.
Most popular related searches
hydraulic oil cooler
lithium battery
battery management system
electric motor
electrical system
battery management
battery system
energy management system
electrical equipment
energy management
- Electric motor 9.6 kW
- Hydrostatic four wheel drive with automotive control
- Li-Ion battery pack, 48 V / 12.2 kWh
- On-board charger with Type 2 connector enables charging at a 230V power outlet or a wallbox
- Charging cable type 2 / CEE 16 A, 4 m
- Battery management system
- Energy recuperation
- Eco mode to extend the operating time
- Tyres 23x8.50-12 AS, offset +60
- Genuine Schäffer axle, 5 hole
- Hydraulic oil cooler
- Drum brake as parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Parallel lift
- Mechanically operated additional controller
- Silence gear pump, especially quiet
- Working hydraulics: 28 l/min
- Adjustable steering column
- Hour meter and charging status display
- Driver-on-board switch
- Quick-change frame SWH with hydraulic tool lock
- Engine
- Output: 9.6 kW
- Tyres
- Standard tyres: 23x8.5-12 AS
- Option I: 23x8.5-12 SKD/MultiTrac
- Option II: 23x10.5-12 AS/MultiTrac
- Electric system
- Operating voltage: 12 V
- Dimensions
- (A) Wheelbase: 1,345 mm
- (B) Chassis length: 2,450 mm
- (C) Overall length with standard bucket: 3,050 mm
- (D) Digging depth: 80 mm
- (E) Max. working height: 2,635 mm
- (G) Loading height with pallet forks: 2,020 mm
- (H) Max. dumping height: 1,510 mm
- (I) Front end height: 1,390 mm
- (J) Dumping width: 195 mm
- (K) Seat height: 1,010 mm
- (L) Protective roof height: 1,990 mm
- (M) Max. bucket pivot point: 2,230 mm
- (N) Overall width / option: 890 / 1,060 mm
- (O) Inner turning radius: 970 mm
- (P) Outer turning radius: 1,875 mm
- (Q) Outer radius with standard bucket: 2,222 mm
- Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: Original Schäffer axles, 5-hole rim
- Speed: 16 kph
- Brakes and steering
- Service braking system: hydrostatic
- Parking brake: mechanical drum brake
- Steering: fully hydraulic articulated-swivel steering
- Tank capacity
- Hydraulic oil: 22 l
- Working hydraulics
- Delivery rate: 28 l/min
- Operat. pressure: 200 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,345 kg
- Lifting capacity: 810 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 630 kg
- Tipping load, straight, bucket acc. to ISO 8313: 850 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 430 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 550 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 344 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 258 kg
- Payload bucket acc. to EN 14397-1: 275 kg
- Sounds and vibration
- Sound pressure level LpA: 71 db(A)
- Sound power level guaranteed LwA: 99 db(A)
- Sound power level equivalent LwA: 90 db(A)
- Hand/arm vibration acc. to ISO 8041: < 2.5 m/s²
- Total body vibration acc. to ISO 8041: < 0.5 m/s²
