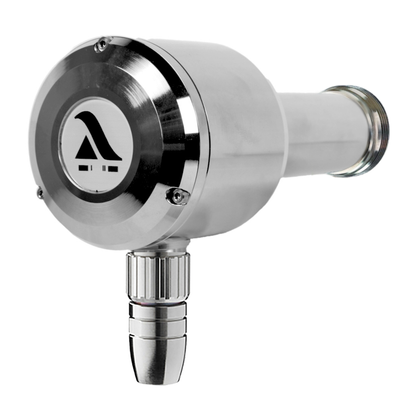

Lamtec - Model F200K / F200K Ex-II -Compact Flame Scanner
The F200K is mainly used as a single and multi-fuel burner in large power plants, heating plants, chemical plants, waste incineration plants and combustion plants with a restricted view of the flame. It can be used for monitoring firing systems, that are operated with.
- Compact flame scanner
- For single-burner and multi-burner systems, continuous operation
- Compact housing with integrated flame sensor and circuit amplifier
- Multi-level sensitivity adjustment
- Digital flame frequency evaluation
- Status display via LED
- Measurement output for intensity 0-20 mA
- 2 channel system with electronic self-monitoring
- Connectable trend display for optimal flame adjustment
- SIL 3 according to DIN EN 61508-2
- Oil
- Gas
- Hydrogen
- Biomass
- Special gases such as refinery and blast furnace gases
- Wood
- Coal
- Firings with strong flue gas recirculation
- Waste gases with a yellowish colour without UV radiation or shielding of the UV components by water vapour, dust...
The compact flame scanners can be used for a wide variety of applications and almost all monitoring tasks.
The flame scanners takes over the safety-related monitoring of burner flames in single and multi burner firing systems.
When the flame is extinguished, the safe switching state "flame OFF" is reached.
- 2 pre-set operating modes
- No special aids are required for commissioning
- Optionally available for Ex zone 2
- SIL 3
EC Type Examination Certificate according to 2014/68/EU (Pressure Equipment Directive)
- DIN EN 298
- DIN EN 13611
- DIN EN 61508-2
- DIN EN 50156-1
EC Type Examination Certificate according to 2016/426/EU (Gas Appliances Regulation)
- DIN EN 298
SIL 3
- DIN EN 298
- DIN EN 61508-2
CE Declaration of Conformity
- DIN EN 298
- DIN EN 60730-2-5
- DIN EN 60730-1
- 2014/35/EU (Low Voltage Directive)
- 2014/30/EU (EMC Directive)
- 2014/68/EU (Pressure Equipment Directive Cat. 4 Module B+D)
- (EU) 2016/426 (Gas Appliances Regulation GAR)
- 2011/65/EU (RoHS)
- 2015/863/EU (RoHS)
USA and Canada
- UL 372
- CAN/CSA-C22.2 No. 199
EX certificate
- Ex-Zone 2
- IEC 60079-0:2017 Edition:7.0
- IEC 60079-15:2017 Edition:5.0
- IEC 60079-31:2022 Edition:3.0
- IEC 60079-7:2017 Edition:5.1
- Division
- ANSI/ISA-12.12.01-2015
- CAN/CSA C22.2 No. 213-15
