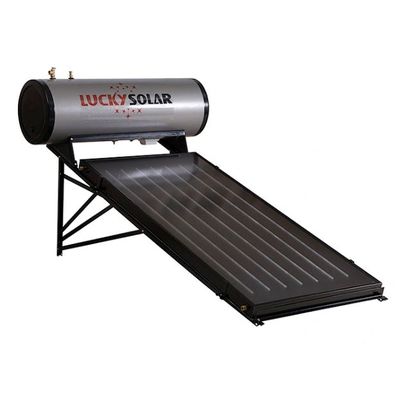

LuckySolar - Model JXFPC-X -Compact Flat Plate Solar Water Heater
LUCKY high pressure compact thermo siphon systems are systems which producing hot water from solar based on the principle of nature circulation between cold and hot water. The advantage of this system is that it avoids using a conventional pump.
Most popular related searches
flat plate solar water heating
solar water heating
flat solar water heating
solar water
thermal insulation
solar collector
flat solar collector
solar panel
- Material : Aluminum board
- Surface Treatment : Sputtering
- Absorptivity : 95±2%
- emissivity : 5±2%
- Construction Type : Grid type
- Header Material : Copper TP2/CA1220
- Header tuber size : ∮22mm*Thickness 0.8mm
- Riser Material : Copper TP2/CA1220
- Riser tuber size : ∮8mm* Thickness 0.75mm
- Work Pressure : 0.6Mpa
- Test pressure : 1.2Mpa,keeps 5 minutes
- Thermal Insulation
- Insulation Material : Fiberglass
- Insulation Thickness : 45+/-5mm
- Density : 35kg/cube
- Casing
- Frame : Aluminum alloy
- Frame Color : silver or black
- Back Plate : Aluminum plate
- Max Operation Temperature : 95℃
- Sealing Gasket : EPDM
