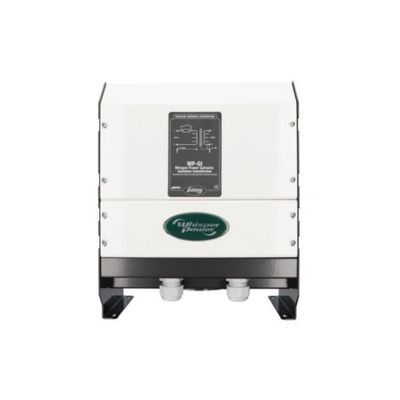

WhisperPower - Model GI 3600 - Compact Galvanic Isolation - Transformer
FromWhisperPower
DIMENSIONS & WEIGHT: Weight (Kg) : 28.6. Dimensions (HxWxD) : 380 x290 x 208 mm. WINDING DATA: Rated power : 3.6 kVA. Rated voltage : 230 V / 110 V. Rated frequency : 50 Hz / 60 Hz. Nominal current : 16 A / 32 A. Inrush current : Softstart included
Most popular related searches
galvanic isolation transformer
overvoltage protection
AC distribution
isolation transformer
overvoltage
transformer isolation
wind power
circuit breaker
GENERAL
- No load consumption : 21 W per unit
- Full load efficiency : >95%
- Ambient operating temperature : -10°C .. +45°C, derating to 80°C
- Storage temperature : -25°C to 85°C
- Operating humidity : 95% max, non-condensing
- Audible noise : <40.0 dB(A); <50dB(A) with forced cooling
- Local user interface : None
PROTECTIONS
- Overcurrent, short circuit : Not included, external breaker(s) required according to local regulations
- Temperature protection : Automatic switch off if transformer core > 120°C
- Overvoltage protection : Softstart is protected for overvoltage using fuse
- Earthscreen between windings : Compliant to ABYC, can carry full fault current
- Safety : Standards IEC 60079, IEC 60726
MECHANICAL
- Protection degree : IP21
- Connections input/output : 6 mm2 max.
- Cable gland entry : 22 mm
- Mounting holes : M8
- Enclosure construction : Aluminum sheet metal
- Surface finishing : RAL9010 white + AE80104123621 black
