Apator SA

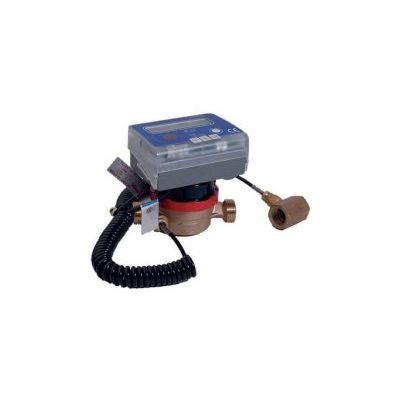

CQM-III-K - Model DN15-20 -Compact Heat Meter with Rotating Flow Transducer
FromApator SA
Compact heat meter with professional heat converter LQM-III, with archiving of many of data readings. For measuring the consumption of heat energy drawn from heat networks by small residential or office buildings. Heating factor with a temperature up to 90 °C and maximum working pressure up to 16 bar (PN16). Suitable for installation in the horizontal hoses (pipelines) with the counter directed upwards (H), or in vertical hoses (V) with the counter directed sidewards.
Most popular related searches
Metrological class
- Class B - H, A - V
Product features
- The modern multi-functional microprocessor heat counter
- Removable communication modules
- Power supply independent – battery powered, in standard versions battery life is 5 years
- Sensors connecting cable 2m
- 4 impulse inputs (possibility of independent configuration of impulse weight of each output)
Removable communication modules
- M-Bus
- RS 232
- RS 485
- RS 485 with Lumbus or Modbus protocol
- Lon Works
- radio module
- radio module Wireless M-Busd
