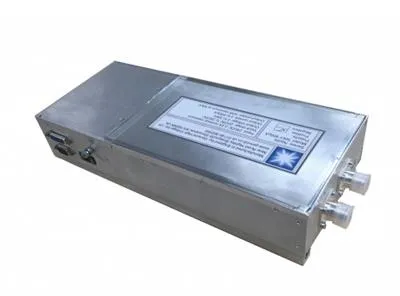

Aquila - Compact High Voltage Module
Aquila - Compact High Voltage Module40W Output Power, up to 50kV Output Voltage. The Aquila high voltage power supply is a compact bench top power supply offering up to 50kV of output voltage. The supply is designed to operate from a DC power source and is controlled through analogue signals via remote control. The Aquila was originally designed as a direct industry alternative for use in polymer separation processes. This high voltage, low current module make it ideal for a variety of applications outside this process. The compact size, lightweight and affordability of the Aquila make it a popular addition to our range of laboratory power supplies designed for use in universities and research centres the world over. Applications include: Polymer separation
Input specifications
- DC input voltage range 20 to 28VDC
- Input current 2.2A Maximum.
Output specifications
- Output voltage range Near 0kV to 50kV
- Available output voltages 10kV, 20kV, 30kV, 40kV and 50kV (For other output voltages please contact the factory)
- Output polarity Positive or Negative
- Voltage load regulation <0.5%
- Voltage line regulation <0.5%
- Voltage ripple <0.5%
- Voltage stability <0.01% (peak to peak) of maximum output voltage
Controls
- Control interface.
- 15 way D connector (female) for analogue remote control.
- Environmental details
- Operating temperature 0 to 40°C
- Storage temperature 0 to 60°C
- Relative humidity Operation 30% to 80%. Storage <95% non condensing.
Mechanical details
- Weight 2.65kg
- Dimensions Height 65mm, Width 127mm, Length 323mm (including rear connectors)
