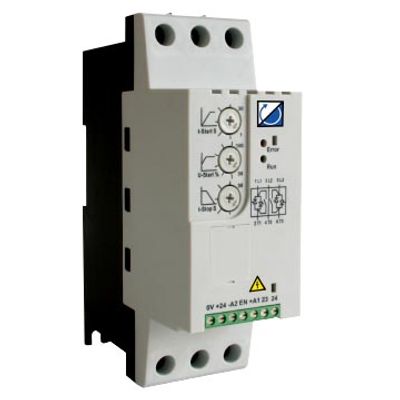

Motortronics - Model VMX-PFE -Compact Soft Starter
With ratings from 2.2kW to 22kW, the PFE is ideally placed to support smaller AC induction motors. Easy DIN rail mounting makes the PFE the natural choice for distributors and customers alike. Benefiting from Fairford’s excellence in engineering, the PFE combines the quality and reliability you have come to expect. This is one product that ticks all the boxes.
Internally Bypassed
Reduces cost because the Soft Starter is out of circuit once it has done its job. This reduces cabinet size and the heat produced which again reduces cost.
Over Current Protected
Protects the Soft Starter against use above its duty rating.
45mm Wide (Size 1)
Same width as typical existing control gear for easy connectability and enables a more compact cabinet to be used.
DIN Rail Mounted
For easy installation – it just clips on.
Current
1 – 41 Amp (2.2 – 22kW @400V)
Operational Voltage
230 – 460 VAC (-15% +10%)
Rated Frequency
50 – 60 Hz +/- 2Hz
Start Time
1 to 30 Seconds
Stop Time
0 to 30 Seconds
Index Rating
Standard:
AC53b: 3-5 : 355
Starts per Hour
10
Up to 60 with Optional Fan
IP Rating
IP20
Altitude
1000m without de-rating
Ambient Temperature
0°C to 40°C without de-rating
