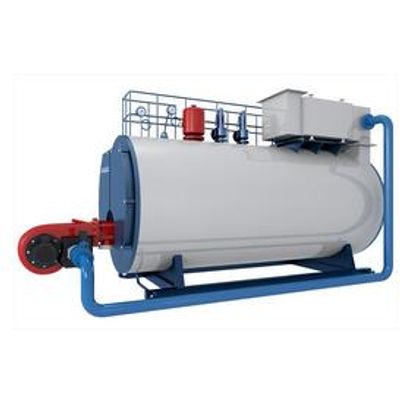

Devotion - Model WNS -Condensing Pressurized Hot Water Boiler

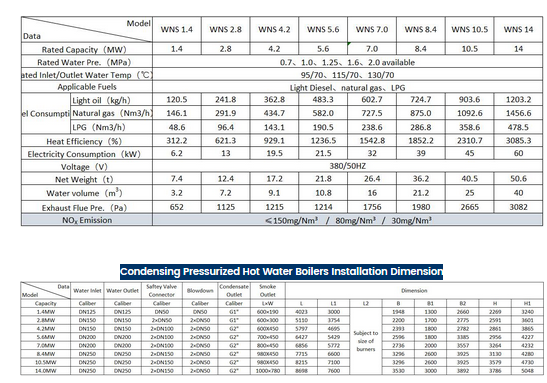

Having 6-8% higher efficiency than regular hot water boilers, Devotion Condensing Pressurized Hot Water Boilers, availing three-pass structure and integrated with separate economizer, are specially designed for central heating, and extensively applied on industrial, commercial and civil heating projects. Rated output: 1.4MW-14MW. Rated water pressure: 0.7, 1.0, 1.25, 1.6, 2.0 Mpa.
Most popular related searches
hot water boiler
condensing boiler
central heating
energy saving
combustion system
flue gas technology
fire tube boiler
boiler pressure
furnace
condensing economizer
-
Item No.: Cond HW
-
Payment: TT LC at sight
-
Product Origin: China
-
Color: Blue and White
-
Shipping Port: Guangzhou, Shenzhen
-
Min Order: 1
-
Lead Time: 30-45 days
- Two Stage Energy Saving. Absorb heat of exhaust flue by taking advantage of economizer and condensate vapor through finned-tube condenser to recover 5% of the afterheat and decrease exhaust flue temperature to 70℃.
- All Wetback Three Pass Structure Heat is thorough absorbed when flue goes through chamber, fire tubes, economizer. The boiler features compact configuration, packaged for delivery, fast and easy installation.
- Low Nox Combustion Big hearth specially designed to achieve super low NOx emission, together with full premix combustion technology (FPB technology ) and flue gas recirculation(FGR) technology, lower the emission of NOx below 30mg/m³.
- Corrugated Furnace Plus Threaded Fire Tubes. Increase heating surface of the hearth, and avoid damages to the hearth resulted from Expansion and Contraction, and reduce flue resistance and improve heat efficiency assisted by threaded fire tubes.
