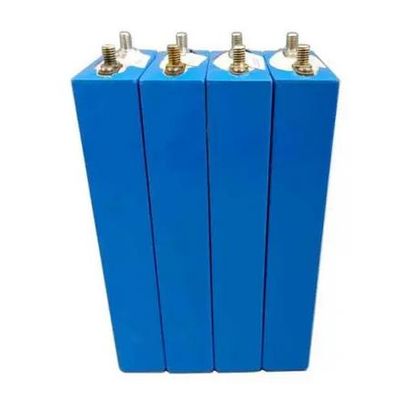

Coninno Power - Model 20Ah - LiFePO4 -Prismatic Cell

Technical Specs.

• Nominal Capacity: 20Ah
• Nominal Voltage: 3.2V
• Impedance: ≤2mΩ
• Cycle Life: ≥2000 Cycles
• Charge Cut-off Voltage: 3.65V
• Discharge Cut-off Voltage: 2.5V
• Max. Charge Current: 1C (20A)
• Standard Discharge Current: 1C (20A)
• Max. Continuous Discharge Current: 2C (40A)
• Max. Pulse Discharge Current (10S): 3C (60A)

Temp. Specs.:

• Charge Operating Temp.: 0~45?
• Discharge Operating Temp.: -20~55?
• Storage Temp.: -10~35?

Mechnical Specs.:

• Cell Dimension: 27*70*150 MM
• Cell Weight: Approx. 550 G
• Casing Material: Aluminum

Other Specs.:

• Certificate: UN38.3, MSDS, CE
• Application: Electric Vehicle, Electric Bike, Electric Scooter, Electric Tricycle, Energy Storage, etc.

• Accessories
