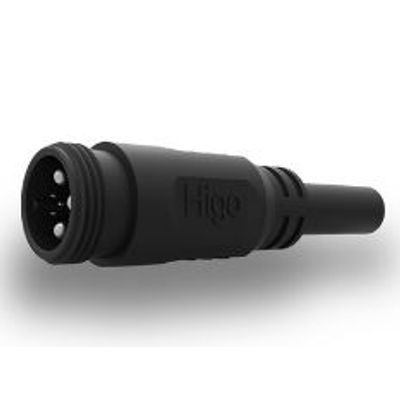

Higo - Model F.M-L1114 -Connector

SHARE

Electrical Characteristics: Rated Voltage 60V AC/DC. Rated Current Power 20A,Signal 2A. Withstanding Voltage 700V. Insulation Resistance ≥20MΩ. Contact Resistance ≤10mΩ.

Most popular related searches
electric motor

Mechanical Characteristics

  • Mating Type  Screw Locking
  • Mating Cycles 200Times

Performance

  • Operation Temperature -25eO+80°C
  • Protection Degree  IP67

Wires Specification

  • Max Outer 014mm Diameter
  • Mating Length    79mm
  • Contact Material  Copper alloy plated with sliver which conforms to military standard
  • Wire Section 2.Gmm2+G.14mm2
