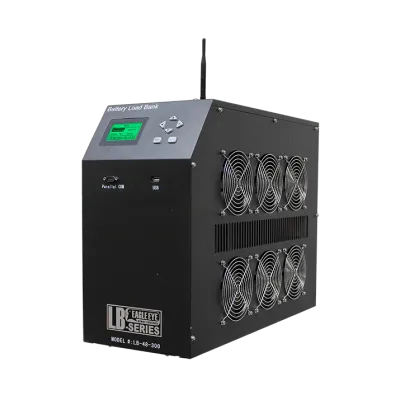

Eagle Eye - Model SLB Series - Constant Current DC Load Tester with Wireless Cell Monitoring
Eagle Eye Power Solutions’ SLB-Series DC Load Testers are designed for ease of use, portability, and versatility in mind. Discharge testing batteries is the only verifiable method the capacity of your batteries and the SLB delivers a programmable, constant current load for your testing needs. Whether you are load testing for capacity, performance, acceptance, NERC compliance, or other, the SLB provides an economical complete package solution. Increase employee and battery system safety with per cell monitoring and standard built in auto-shutdown features. To suit a variety of industries and diverse applications, Eagle Eye Power Solutions offers over 75 standard models to fit your exact needs at the best price.
Most popular related searches
load bank
load current
string voltage
battery system
discharge test
circuit breaker
battery safety
battery testing
battery discharge
- Safely monitor live tests remotely with wireless communication to the SLB load bank
- DataView software includes live monitoring, data recording, and report exporting to Microsoft Excel
- Discharge auto-shutdown for time duration, total string voltage, capacity, and individual cell voltage
- Parallel with another SLB-Series unit for increased discharge current capacity
- Assistant discharge feature allows for compatibility with existing non-SLB load banks
- Increase current and add individual cell monitoring to your existing equipment with SLB-Series
- Built-in circuit breakers for emergency shutdown and overload protection
- Optional: Real-time display of voltage for each cell/unit with DAC package for 1.2V, 2V, 6V, 12V cells
- Optional: Custom DAC packages available for monitoring of uncommon cell voltages and configurations
- Cell Voltage: Standard DAC: 1.2V1, 2V, 6V, 12V / Optional 3.6V, 4V, and other custom DAC configurations available upon request
- Discharge Current Range: Single Load: 12 – 600A / Parallel Load: Up to 1200A
- Discharge Voltage Range: Range: 10 – 576V (Max) / Voltage Steps: 12V, 24V, 36V, 48V, 80V, 125V, 240V, 380V, 480V
- Accuracy: Discharge Current: 1% / Voltage: 0.5% – 0.8%
- Resolution: Discharge Current: 0.1 A or 0.5% / Voltage: 0.001 V
- Sampling Interval: 5 seconds – 1 minute
- Data Transfer: USB, Wireless (466 MHz)
- Display: Backlit LCD
- Operating Environment: 0 – 40 °C (32 – 104 °F)
- Power Requirements: 110/220 VAC 50/60 Hz / DC (from connected batteries)
- Dimensions:
- Small: 400 x 177 x 288 mm (15.7 x 7 x 11.3 in)
- Medium: 520 x 202 x 355 mm (20.5 x 8 x 14 in)
- Large: 555 x 225 x 435 mm (22.5 x 8.9 x 17.2 in)
- X-Large: 603 x 400 x 740 mm (23.7 x 15.7 x 29 in)
- XX-Large: 762 x 406 x 737 mm (30 x 16 x 29 in)
- Weight: Small: 11 kg (24 lbs) Medium: 16 kg (36 lbs) Large: 21 kg (47 lbs) X-Large: 42 kg (93 lbs) XX-Large: 55 kg (122 lbs)
