COMEM - Contactless Liquid Level Indicators

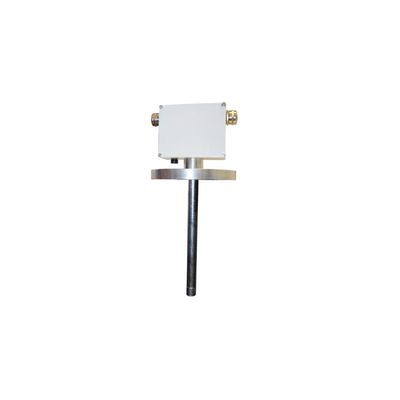

Liquids like mineral and silicone oils insulate and cool a transformer. You need to monitor the level of the oil to assure reliable and safe operation of the transformer. Choose our new contactless ultrasonic sensor-based liquid level indicator type CU eOLI and get continuous high accuracy measurement of liquid level in transformer with or without rubber bag. The sensor calculates the distance of the targeted surface in the transformer measuring the ultrasonic wave flight time. The monitors the preset values remotely or choose to visualize the values on-site at men-height through the easy-to-read eViewer dial installed on the transformer wall and decide on the best transformer maintenance schedule. The indicator is equipped with a digital interface for easy connection to smart grid applications and can be integrated into a system through a central control unit. It is compatible with our complete eDevice family and can be connected also with third-party devices.
- Continuous online monitoring enables the end-users to adopt condition-based maintenance approach and driving asset health management remotely
- High accuracy measurement of liquid level values enabling the end-user informed decision making about effective transformer maintenance schedule
- No moving parts are immersed in the oil, minimizing any possible risk caused by mechanical materials inside the conservator
- Customizable mounting flange suitable for all transformer designs
- Adjustable value settings for alarms and switches
- Compatibility with other eDevices, and third-party accessories enables the end-user a controlled and gradual digitalization of the transformer and remote asset health monitoring
- Easy installation
- Maintenance free
- Smart grid applications
- Liquid-filled transformers with or without rubber bag
- Transformer conservator
- Transformer tank
- Suitable for new installations and retrofits
- Suitable for offshore environment
- Suitable for tropical climates
- eViewer enabling accurate liquid level reading at men-height on-site
Sensor technology: Ultrasonic
Housing: Aluminum alloy
Installation: Indoors, Outdoors, Coastal area, Off shore
Flange: Aluminum alloy
Measurement range for CUeOLI100: 120 – 1,000 mm
Measurement range for CUeOLI200: 200-2,000 mm
Power supply: 24 V dc ± 10%
Analog output: 4-20 mA (MAX Load 450?)
Digital output: Modbus RTU
Relay: 1X programmable changeover relay
Accuracy: 0,5% FS
Repeatability: 0,5% FS
Power consumption: <200mA @ 24 V dc
Operating/storage temperature: from -25°C up to +70°C
Temperature auto compensation: Yes
Degree of protection: IP65
Cable gland: 2; M25x1,5
Flange design: DN65
eViewer – additional dial at men height: Enables liquid level value check on-site; Power supply 24 V dc
