Augier - Model CEP19 - Contactor Switch ...

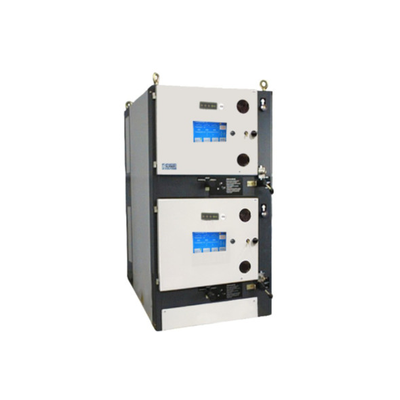

Augier - Model CEP19 -Contactor Switch Cell

SHARE

Contactor cells are recommended for supplying medium voltage networks of long lengths with large operating numbers.

Most popular related searches

medium voltage network

voltage monitoring

Cell composed of one to three superimposed compartment
Fuse protection networks combined with digital protection
Contactor mounted on a removable carriage ensuring visible cut-off
Intuitive and resistive touch screen
Measurement of voltage, intensity, allowing the monitoring of consumption by departure
Departure connected to Ethernet supervision

DFTEP, daytime monitoring of isolation of medium-voltage networks
Contactor with mechanical latching
Single-phase auxiliary transformer 5 kVA

LENGTH: 800 mm
HEIGHT: From 1670 mm to 2140 mm
DEPTH: 950 mm
OPERATING VOLTAGE: 3200 V, 5500 V, 6600 V
CLASS: 7,2 kV
RATED CURRENT: 300 A
FREQUENCY: 50 / 60 HZ
