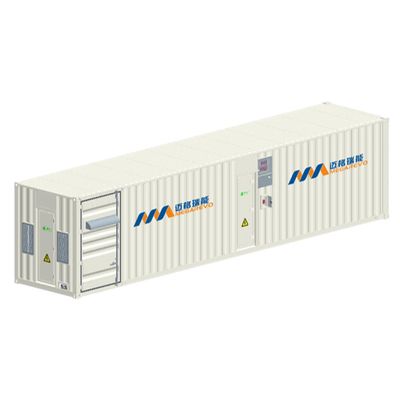

Megarevo - Model ERESS Series -Containerized Energy Storage System
The ERESS Series Containerized Energy Storage System is a state-of-the-art solution designed to meet the growing needs of renewable energy storage, particularly for solar energy projects. This system is engineered to provide efficient and scalable energy storage, making it ideal for a wide range of applications, from residential to industrial use. Featuring advanced battery management technologies, it ensures optimal performance and longevity. The modular design allows for easy customization and integration with existing solar energy systems, providing flexibility in energy storage capacity and power delivery. Supported by ETW International Inc. in the USA, the system is backed by robust support and maintenance services, ensuring reliable and continuous operation. This product is aimed at users with a technical background who require detailed specifications and performance metrics to make informed decisions.
- The energy storage system is highly integrated with a battery management system, PCS(power conversion system), temperature control system, fire control system, access control system, data monitoring system, AC and DC power distribution, lighting system, etc.
- Customized design meets different application needs.
- Three level BMS system provides high safety and reliability
- The charging mode includes pre-charging, constant-current charging, uniform charging and float charging.
- The energy storage system has combined functions of communication, monitoring, management, control, warning and protection. It operates continuously and safely for a long time, and can detect the running state of the system through the upper computer. The energy storage system has strong data analysis ability and provides emergency power supply as needed.
- Model : RESS0500-1832
- DC Parameters :
- Battery Capacity : 1.832MWH
- Number of Battery Racks : 8
- BMS Communication Interface : RS485/CAN
- DC Voltage Range : 560V-817.6V
- AC Side Parameters :
- Rated AC Power : 500KW
- Max. AC Power : 550KW
- Rated Current : 722A
- Max. Output Current : 800A
- DC Current Component : < 0.5 %
- THDI : < 3 %
- Rated Voltage : 400V
- Voltage Range : 320V-460V
- Rated Frequency : 50/60Hz
- Frequency Range : 45-55/55-65Hz
- PF : 1lagging-1leading
- Transformer : No
- General Information :
- Protection Degree : IP54
- Fire Fighting System : Yes
- Running Time (Full Power) : 3h
- Operation Temperature : －30～+55℃
- Dimension(W/D/H) : 12192 ×2438×2896mm
- Weight : 35000kg
- PCS Communication Mode : RS485, CAN, TCP/IP
- PCS Communication Protocol : Modbus RTU, Modbus TCP, IEC104
- PCS Unit Cooling Mode : Forced air
- Battery Unit Cooling Mode : Air conditioning cooling
- Maximum Altitude : 4500 m (derated above 3000m)
- Relative Humidity : 0-95% non-condensing
