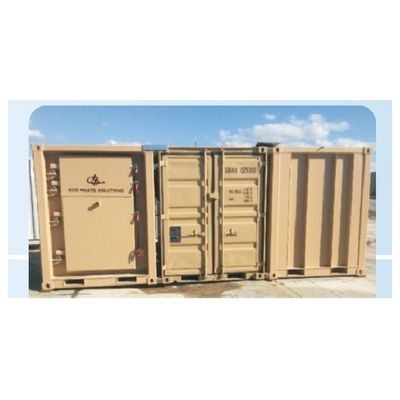

Eco Waste - Model Mobile -Containerized Incinerator Solution

Controls: Main Control Panel contains motor starters, overloads and relays for all components with single-point electrical connection. Programmable Logic Controller (PLC) monitors system functions and provides automated control to the package.

Containerization: Available as 20` ISO shipping containers or tricon based modules.

Temperatures: Primary Chamber: 1200°F-1560°F(650°C-850°C) Secondary Chamber: 1562oF-1832°F(850oC-1000°C) with a minimum retention time of 2 seconds.

Package: Custom-engineered to meet global military specifications orstandard civilian/industrial versionsavailable.

Fuel Supply Options: diesel, fuel oil, JP8, natural gas, arctic diesel, propane and waste oil.

Power Supply: Typically 3 phase, 220 V, 60 Hz., other power supply options available.

External Casing/Finish: 1/4" (0.6 cm) thick mild steel, sandblasted and coated with rust inhibiting and heat resistant paint.

Internal Lining: Walls and roof: 6"(15.24 cm) thick ceramic fibre modules. Floor: factory cured, 6"(15.24 cm) thick reinforced castable monolithic refractory

Burners: Electronic auto spark mechanical packaged burners with flow modulation.

Blowers: Forced air heavy-duty blowers for cooling and combustion air, with automated modulating dampers and speed control (VFD) on Secondary.
